USB 3.2 Extender (Dual HDMI™) - 330ft (Cat6) (USB3-EX2H330R-K)

• USB 3.2 Gen 1 and USB 2.0 Compatible – Supports high-speed data transmission up to 5Gbps for both modern and legacy USB devices.

• USB Signal Extension up to 100m/328ft – Reliable long-distance transmission over a single Cat6a cable.

• Dual HDMI™ Output Ports – Supports video resolutions up to 4K@60Hz (HDMI™ 2.0b), providing high-quality Ultra HD video output.

• Downstream USB Ports with USB 3.2 Gen 1 Support – Ensures fast and stable performance for connected USB peripherals.

• Selectable Dual USB-C Host Ports – Allows for easy source selection with both automatic and manual switching options.

• Audio De-embedding Output – Provides convenient audio extraction for connection to sound systems or amplifiers.

• RS-232 Pass-through and Serial Control – Enables seamless integration with third-party control systems.

• Bi-directional 24V PoC (Power over Cable) – Only one power connection is required at either the transmitter or receiver, simplifying installation.

• Wide Device Compatibility – Supports webcams, PTZ cameras, keyboard, mouse, USB microphones, printers, scanners, touch panel displays, and other USB devices.

• Compact, Reliable Design – Engineered for professional AV environments where long-distance signal extension and installation flexibility are required.


USB3-EX2H330R-K is a professional-grade solution designed to extend both high-speed USB 3.2 Gen 1 signals and HDMI™ video up to 100m (328ft) over a single Cat6a cable. Featuring advanced connectivity and simplified installation, this system provides seamless long-distance transmission for a wide range of USB devices and high-definition video sources.

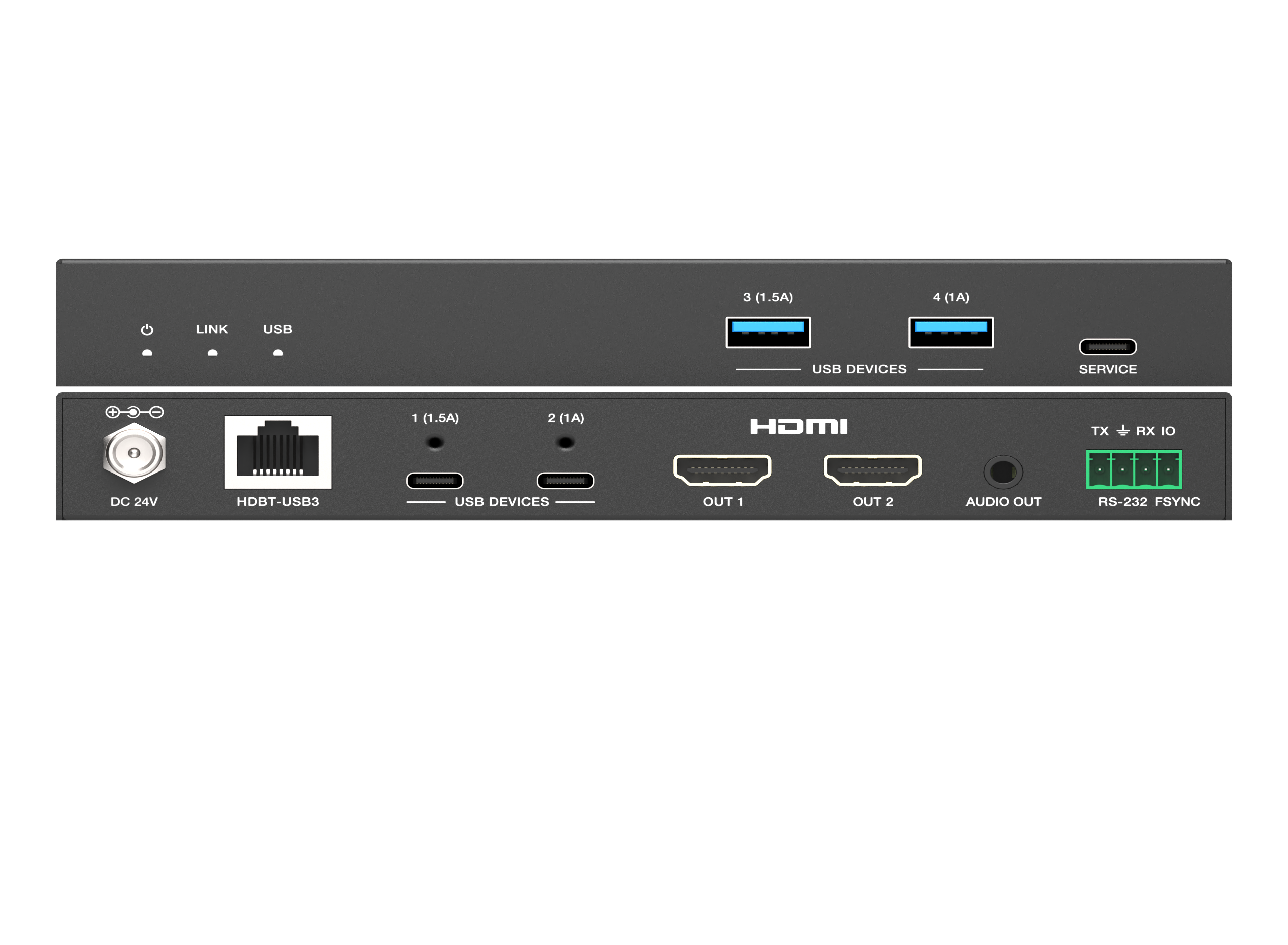

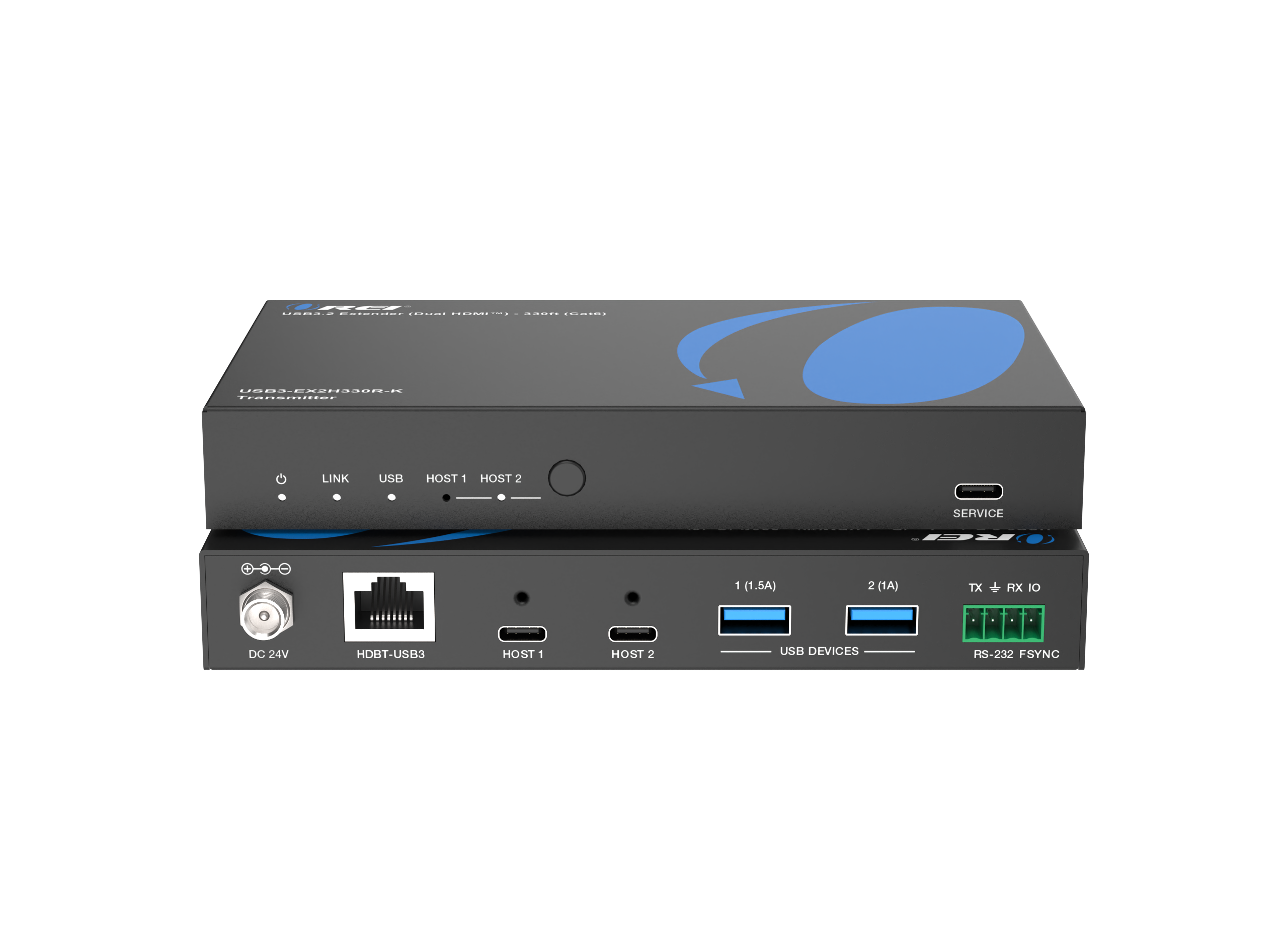

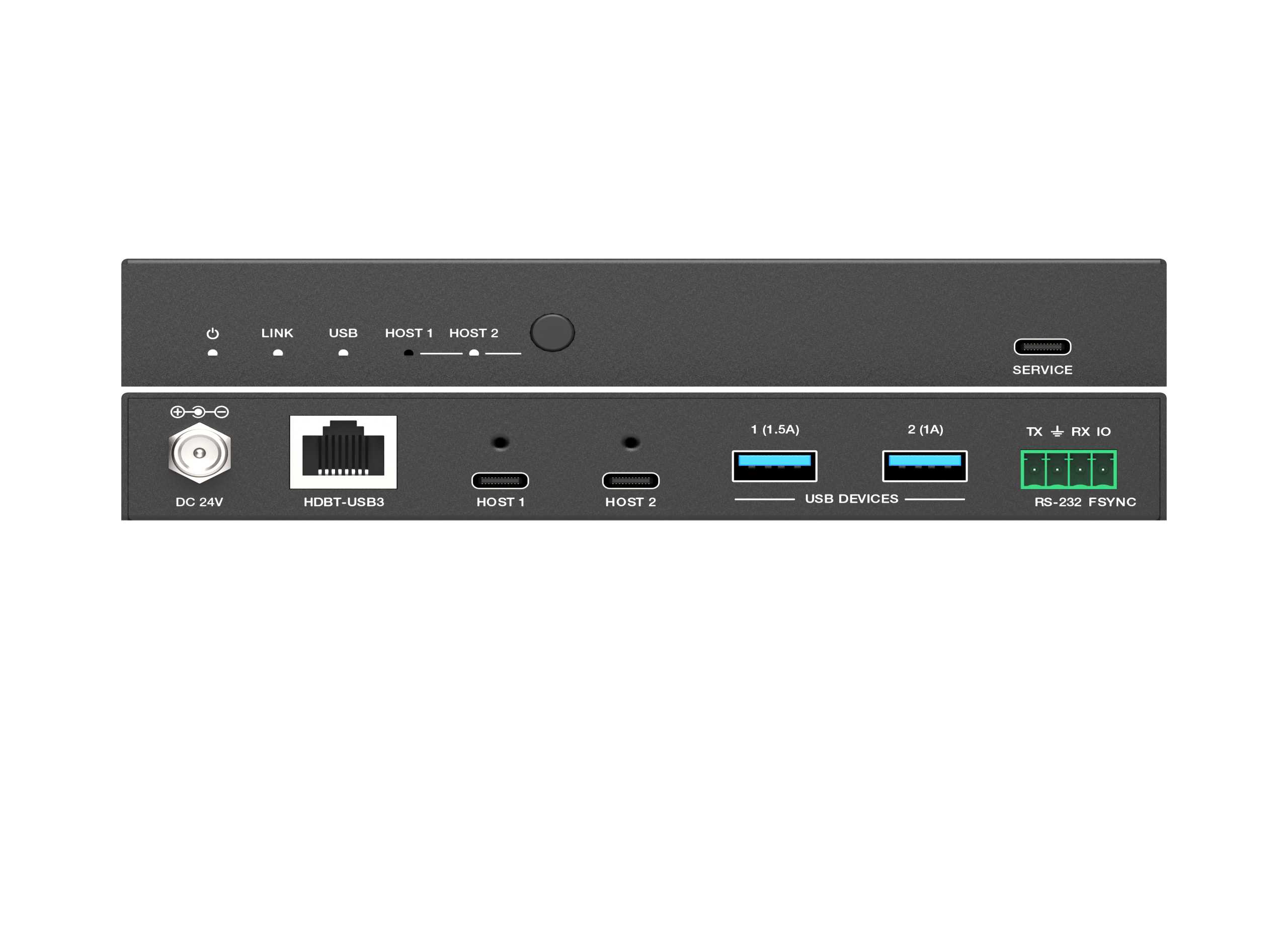

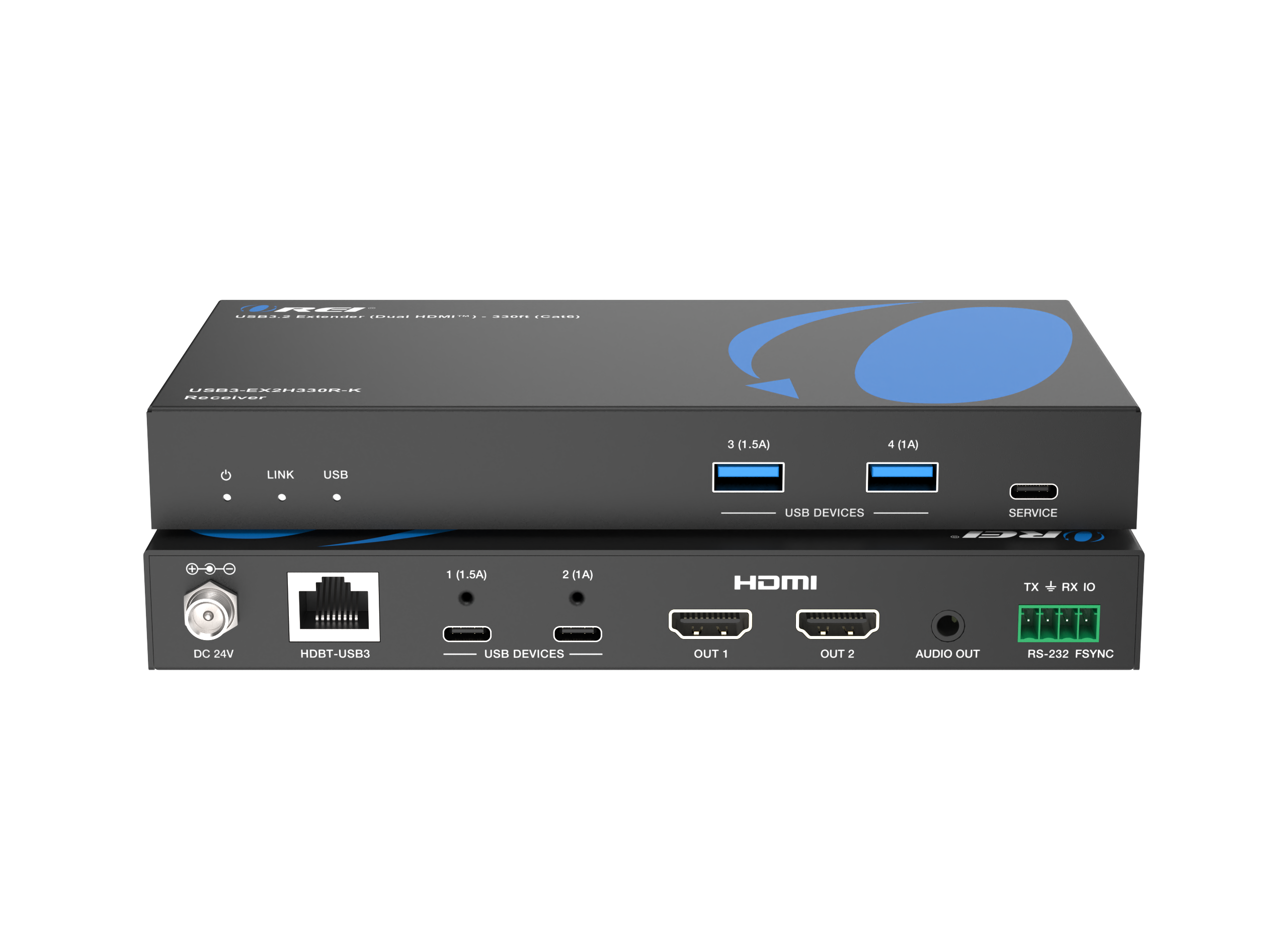

The transmitter offers two selectable USB-C host ports, and two USB-A device ports, while the receiver provides two USB-C and two USB-A device ports, along with dual HDMI™ output ports supporting resolutions up to 4K@60Hz and a dedicated audio de-embedding output. Auto-switching and manual switching modes are available for the USB-C host ports, offering enhanced lexibility for connected devices.

Bi-directional 24V PoC (Power over Cable) simplifies installation by requiring power at only one end, and RS-232 pass-through ensures convenient system integration. Ideal for conference rooms, classrooms, industrial applications, and commercial AV setups, this extender delivers reliable, high-performance USB and HDMI™ signal extension in a compact and efficient form factor.
