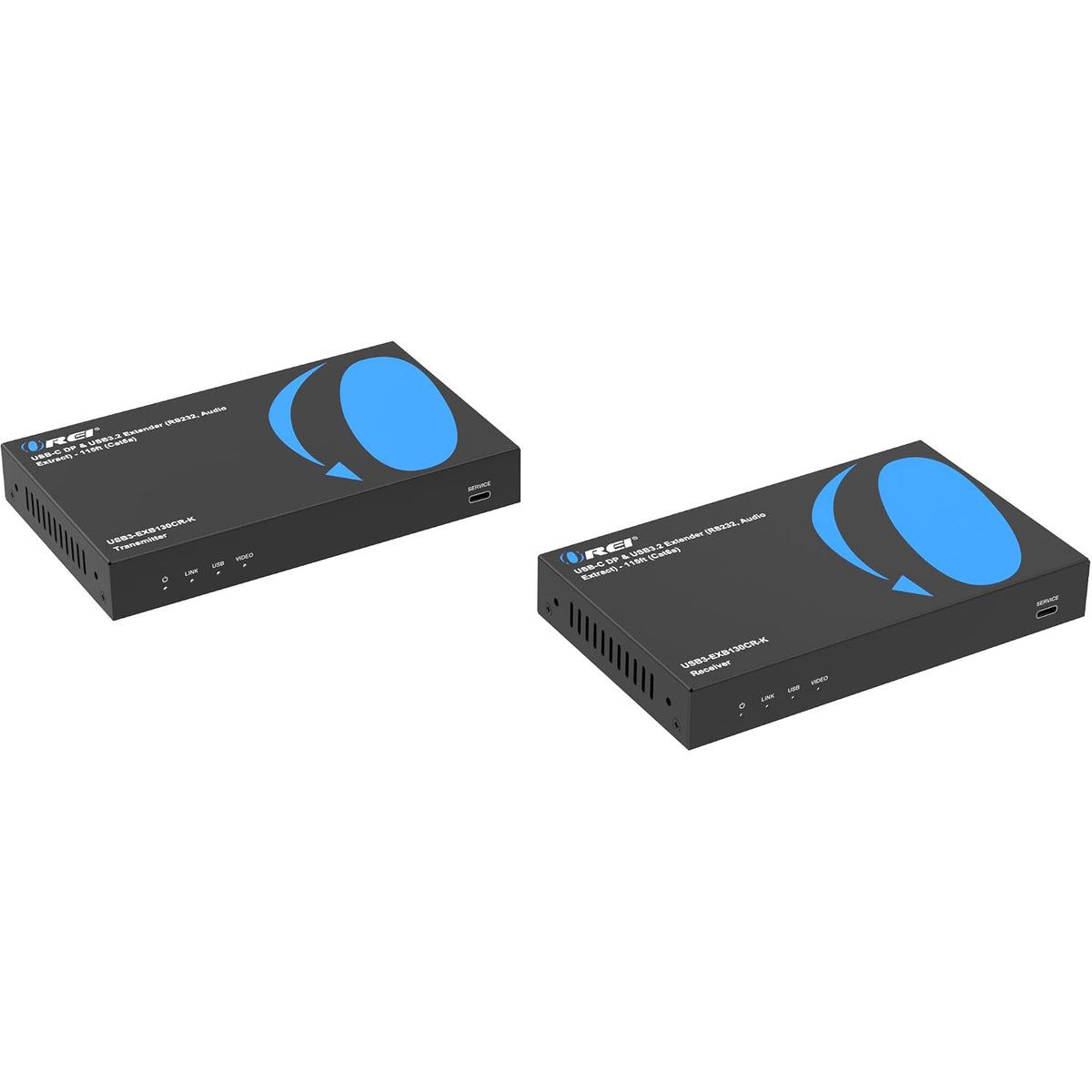

USB-C DP & USB3.2 Extender (RS232, Audio Extract) - 115ft (Cat6a) (USB3-EXB130CR-K)

OREI USB3-EXB130CR-K: USB-C DP & USB3.2 EXTENDER (RS232, AUDIO EXTRACT) - 115FT (CAT6A)

Key Features:

• Full USB-C Extension Solution – Extends video, USB data, and power over a single CAT6a cable.
• 5K Video Support – Supports resolutions up to 5K with DisplayPort Alt Mode 1.4a compatibility.
• Long-Distance Transmission – Extends 4K signals up to 130 ft (40 m) and 5K signals up to 115 ft (35m).
• DisplayPort 1.4a Compliant – Supports high-performance USB-C video transmission.
• USB-C Power Delivery 3.0 – Delivers up to 100W charging to compatible laptops and devices.
• HDCP 2.3 Compliant – Ensures secure transmission of protected content.
• USB 3.2 Gen 1 Data Transmission – Supports transfer rates up to 2.5Gbps for connected peripherals.
• Flexible USB Connectivity – TX features one full-function USB-C input; RX.
• Audio De-Embedding – Supported on both transmitter and receiver for flexible audio integration.
• HDR & Dolby Vision Support – Passes HDR10, HDR10+, Dolby Vision LLM, and HLG formats without degradation.
• RS-232 Pass-Through – Enables control system integration and device management.
• Bi-Directional Power over Cable (PoC) – Either TX or RX can power both units through the CAT6a connection.
• Compact Professional Design – Ideal for conference rooms, classrooms, collaboration spaces, and commercial AV installations.

The USB3-EXB130CR-K is a high-performance BYOD (Bring Your Own Device) extension solution designed to transmit full USB-C signals—including video, USB data, and power—over long distances using a single CAT6a cable. Supporting VESA DisplayPort Alt Mode 1.4a, USB 3.2 Gen 1, and USB-C Power Delivery 3.0, it extends USB-C connectivity up to 130 feet (40 meters) for 4K signals and 115 feet (35 meters) for 5K signals while maintaining exceptional audio and video quality. This makes it an ideal solution for conference rooms, classrooms, collaboration spaces, and other commercial AV environments.

The transmitter features a full-function USB-C input that supports video, USB data, and up to 100W charging for connected laptops. The receiver provides a full USB-C output along with three USB 3.2 downstream ports, enabling seamless integration of peripherals such as keyboards, cameras, microphones, touch displays, and storage devices. With USB 3.2 Gen 1 data transmission up to 2.5Gbps, users can enjoy reliable high-speed connectivity across extended distances. It does not support 5 Gbps operation.

Designed for professional installations, the extender supports HDR10+, Dolby Vision, HLG, audio de-embedding, RS-232 pass-through, and bi-directional 24V Power over Cable (PoC), allowing either the transmitter or receiver to power the entire system. Its compact design, plug-and-play operation, and advanced feature set make it a powerful and flexible solution for modern USB-C AV extension applications.

Note: USB-C charging functionality is available only when the transmitter (TX) is connected to a power supply.
