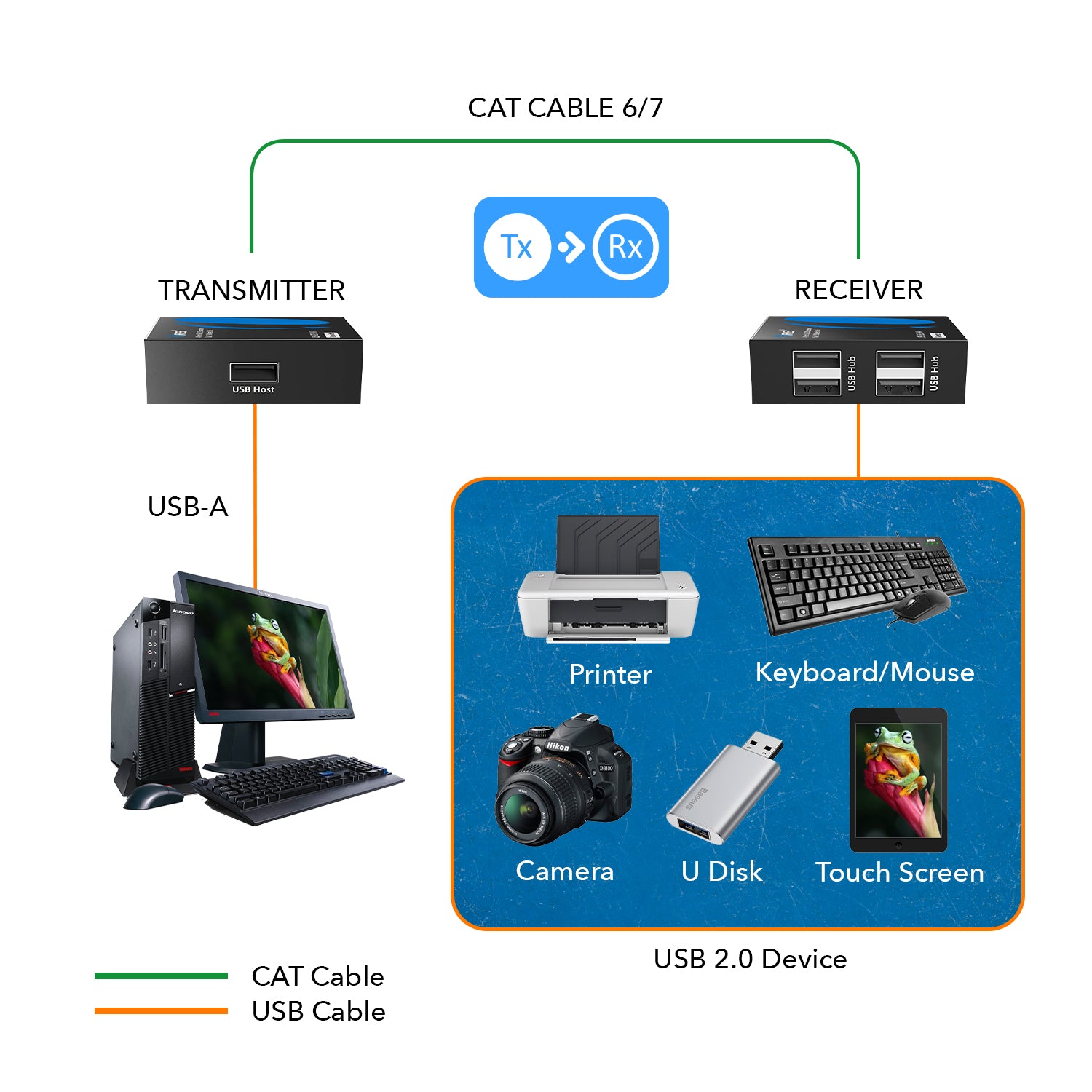

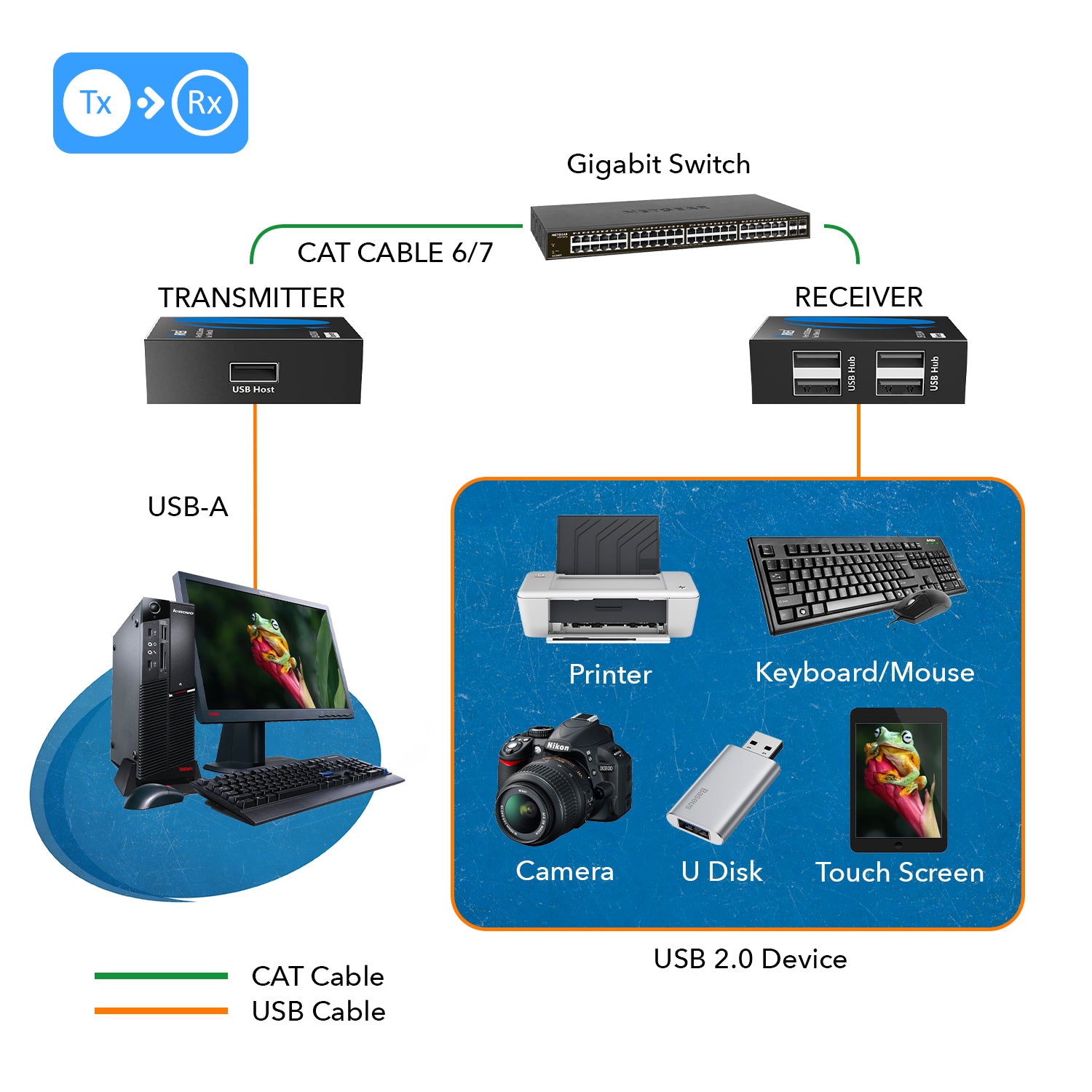

USB-EX330-K is 4 ports 480Mbps USB 2.0 Extender Over 150Meter Cat6, which can realize one-to-one connection through CAT5e/6/7 network cable, with a transmission distance of up to 100m for CAT5e and 150m for CAT6 and above; the distance could be double when connecting a 1Gb switch between the sender and receiver.

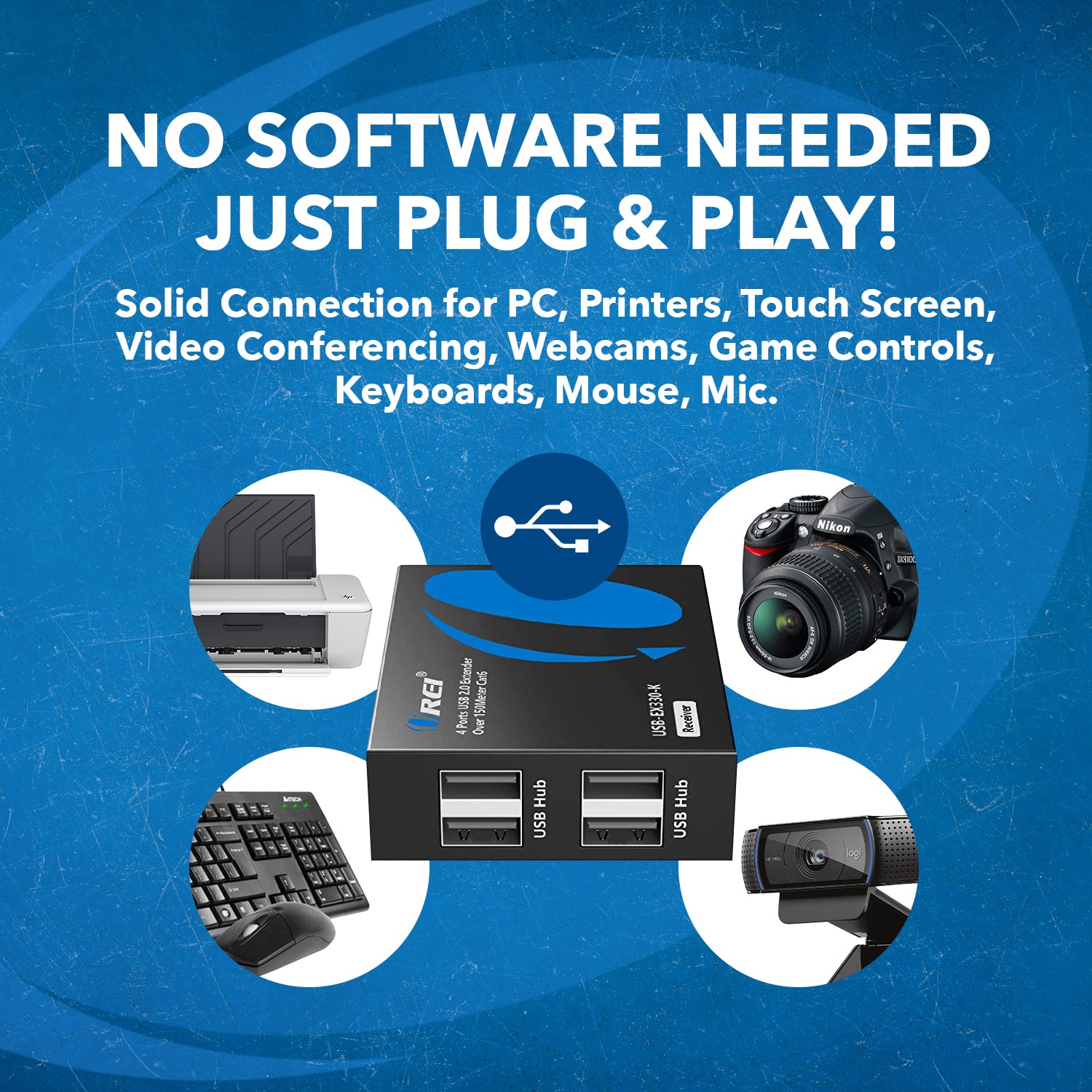

It supports 4 channels of USB 2.0 device input such as a printer, camera, scanner, USB flash drive, keyboard, mouse, touchscreen, etc.
It can be used for security monitoring, gaming, industrial control, professional audio-visual, smart medical, and other fields.
AUDIO AND VIDEO

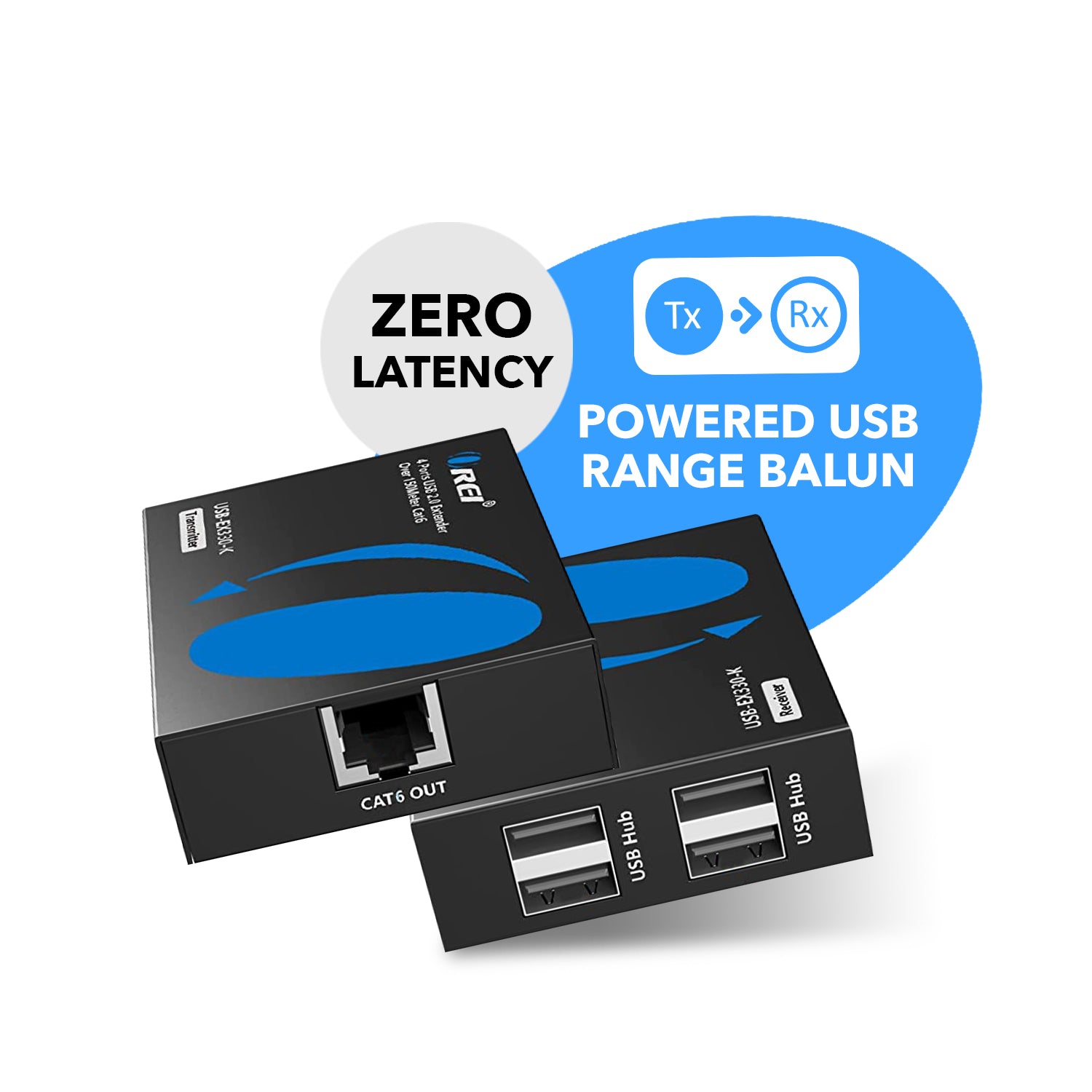

Transmitter:
INPUT PORTS:
1x USB [USB-A, female]
OUTPUT PORTS:
1x CAT [RJ45, female]
Receiver:
INPUT PORTS:
1x CAT [RJ45, female]
OUTPUT PORTS:
4x USB [USB-A, female]
COMPLIANCES & PROTOCOLS
USB Version:
USB 2.0
EXTENDING DISTANCE
100M (Note: The transmission distance can only up to 90 meters for some USB 2.0 Hub)
VIDEO OUTPUT
Video Bandwidth:
Up to 480Mbps

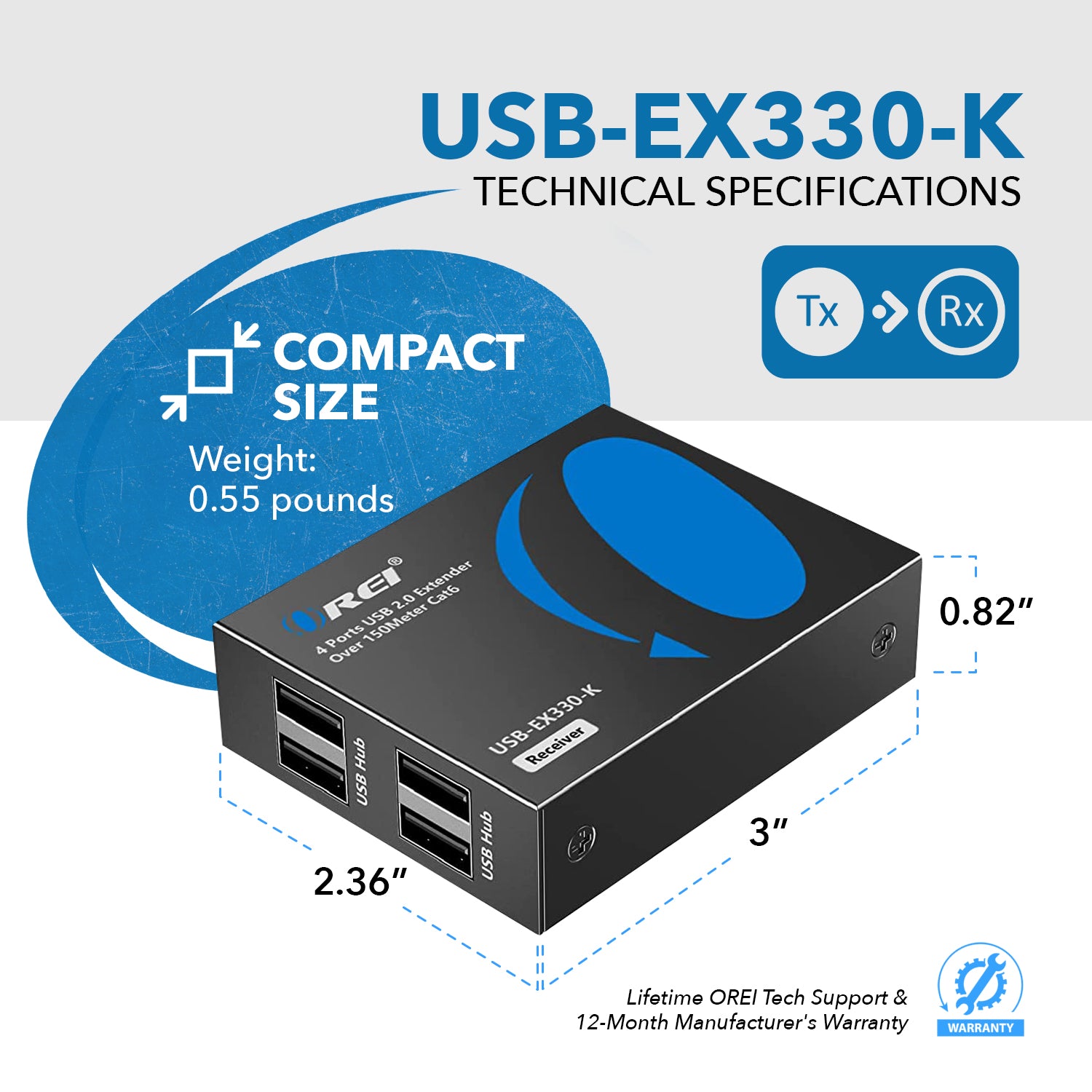

DIMENSIONS & WEIGHT
Height:
21mm
Width:
60mm
Depth:
76mm
Weight:
251g
PROTECTION
Operation Temperature:
-20 ~ 60°C
Storage temperature:
-30 ~ 70°C
Relative Humidity:
0 ~ 90% (No condensation)
ESD Protection:
1a Contact discharge level 2(±4KV) 1b Air discharge level 3(±8KV) Implementation of the standard: IEC61000-4-2
POWER
Power Consumption (Max):
Transmitter:
<2W
Receiver:
<2W

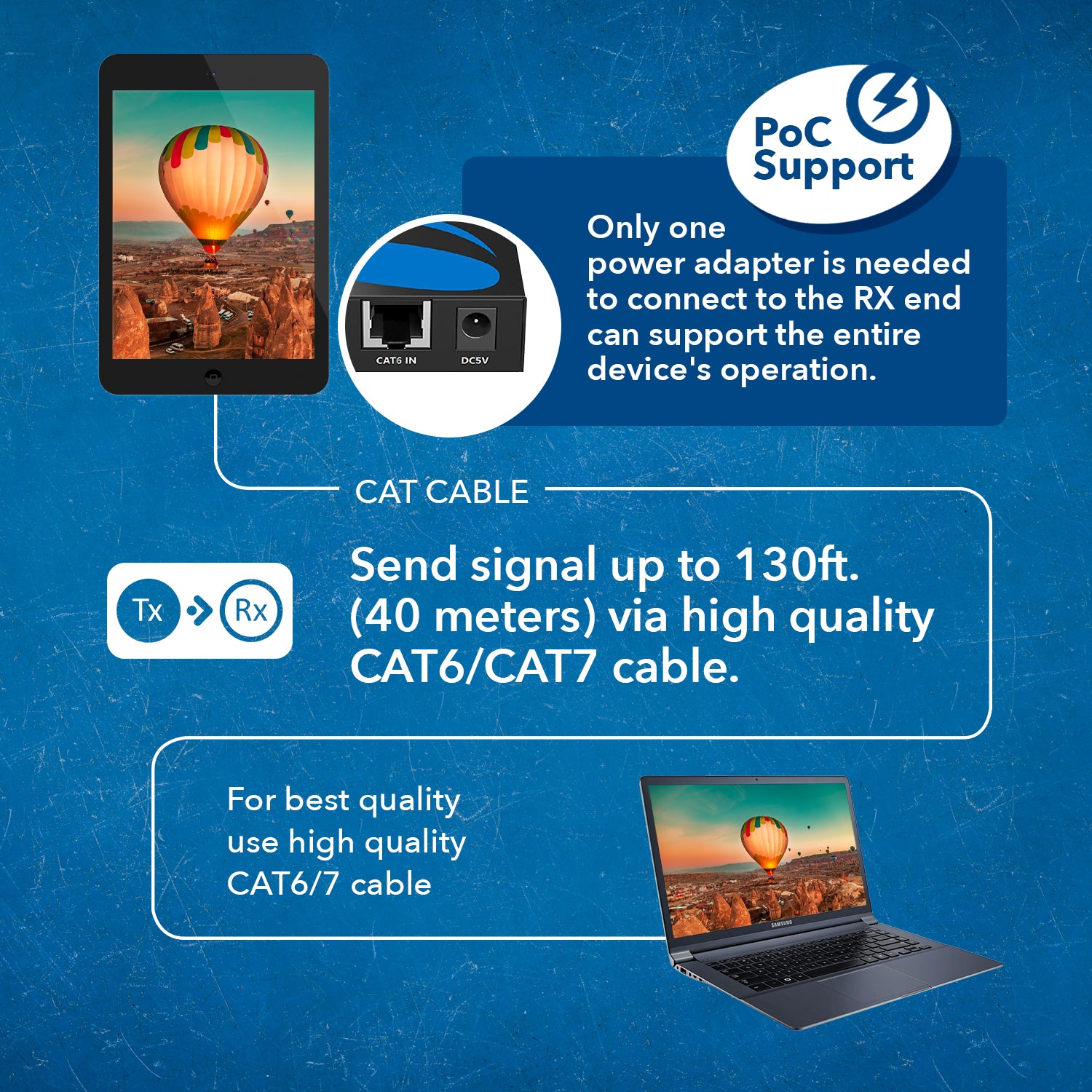

Power Supply:
Input:
Powered by the source device
Output:
DC 5V/3A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Iron
PACKAGE CONTENTS
1x USB Transmitter
1x USB Receiver
1x USB cable (USB-B male head to USB-A male head, one meter )
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
