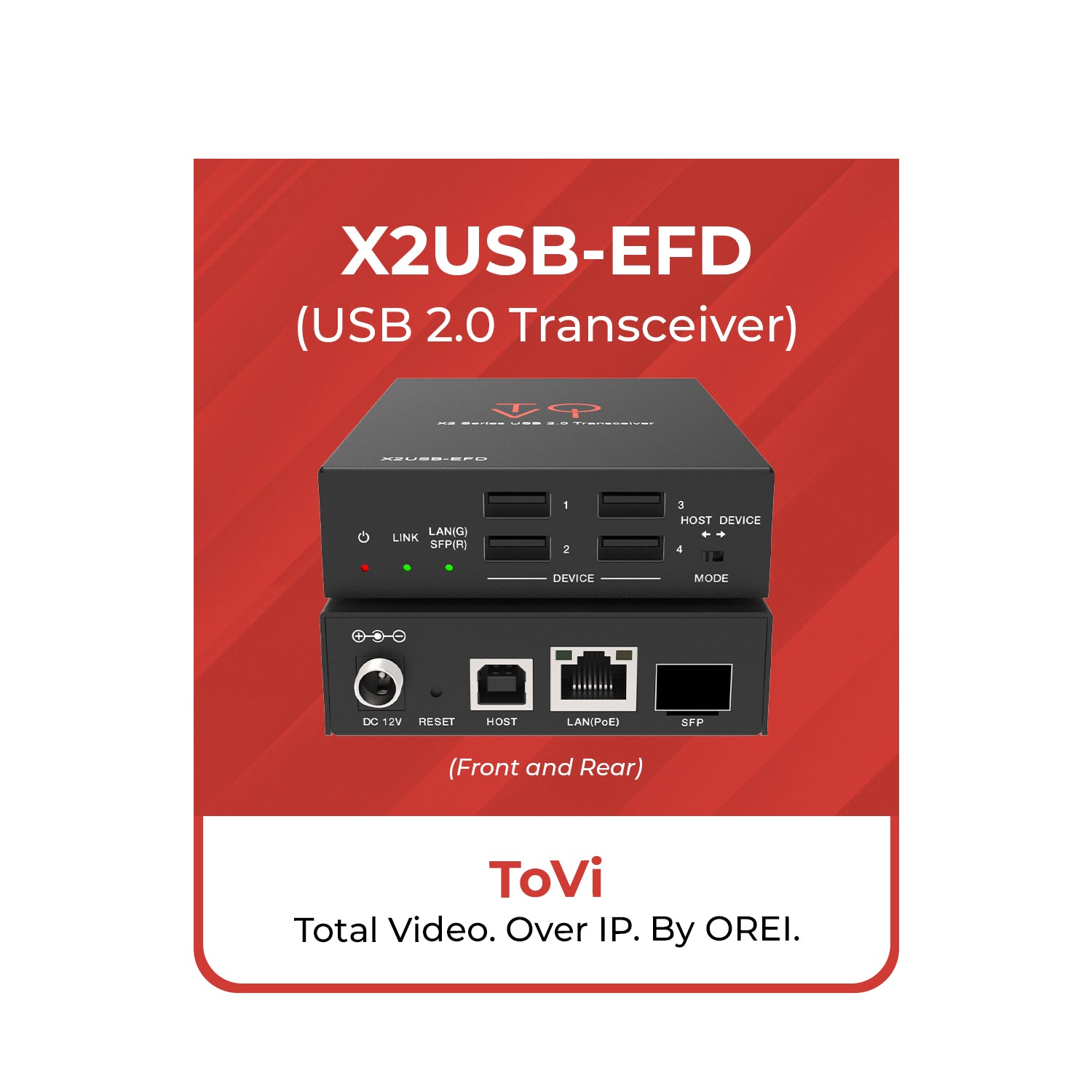

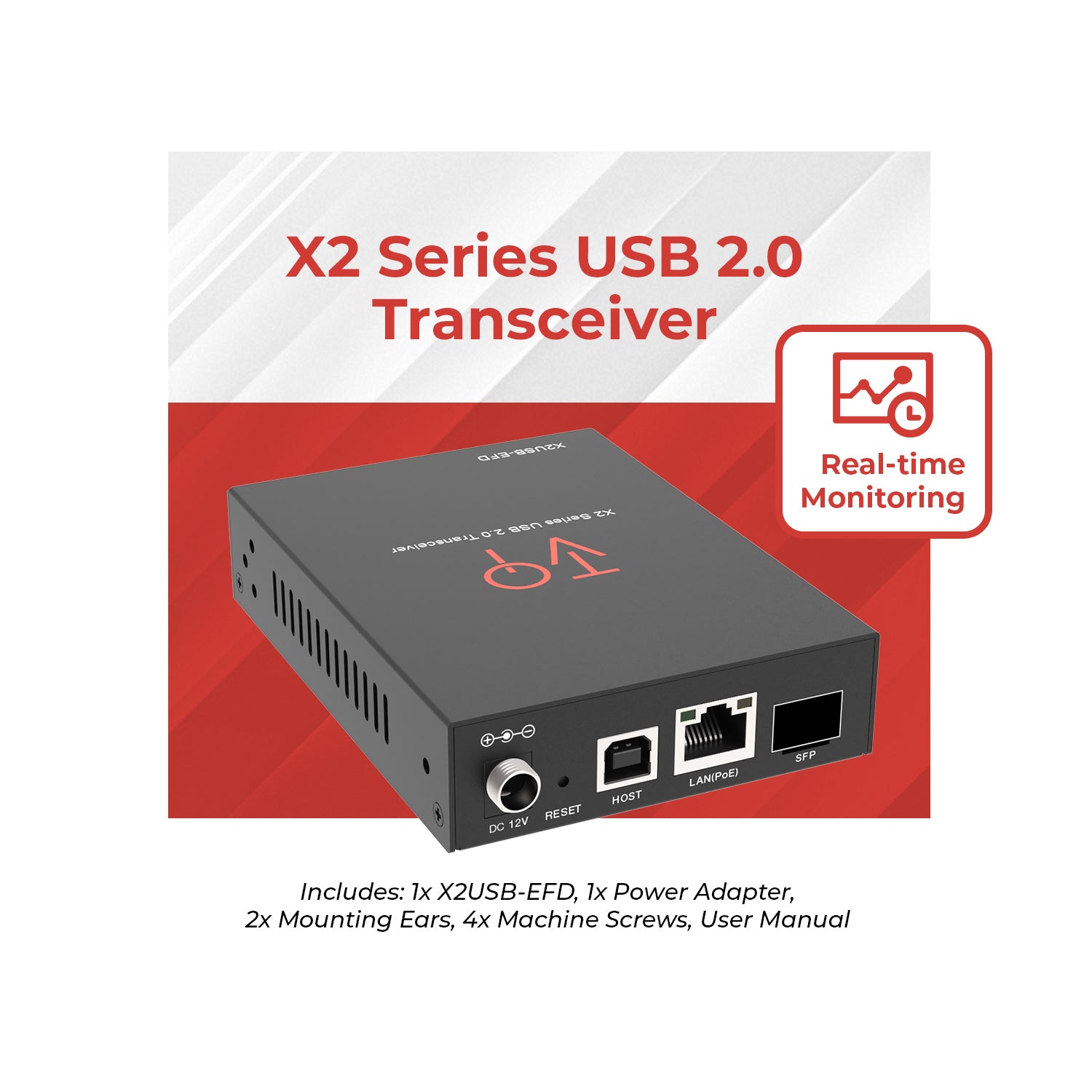

X2 USB 2.0 Transceiver (X2USB-EFD)

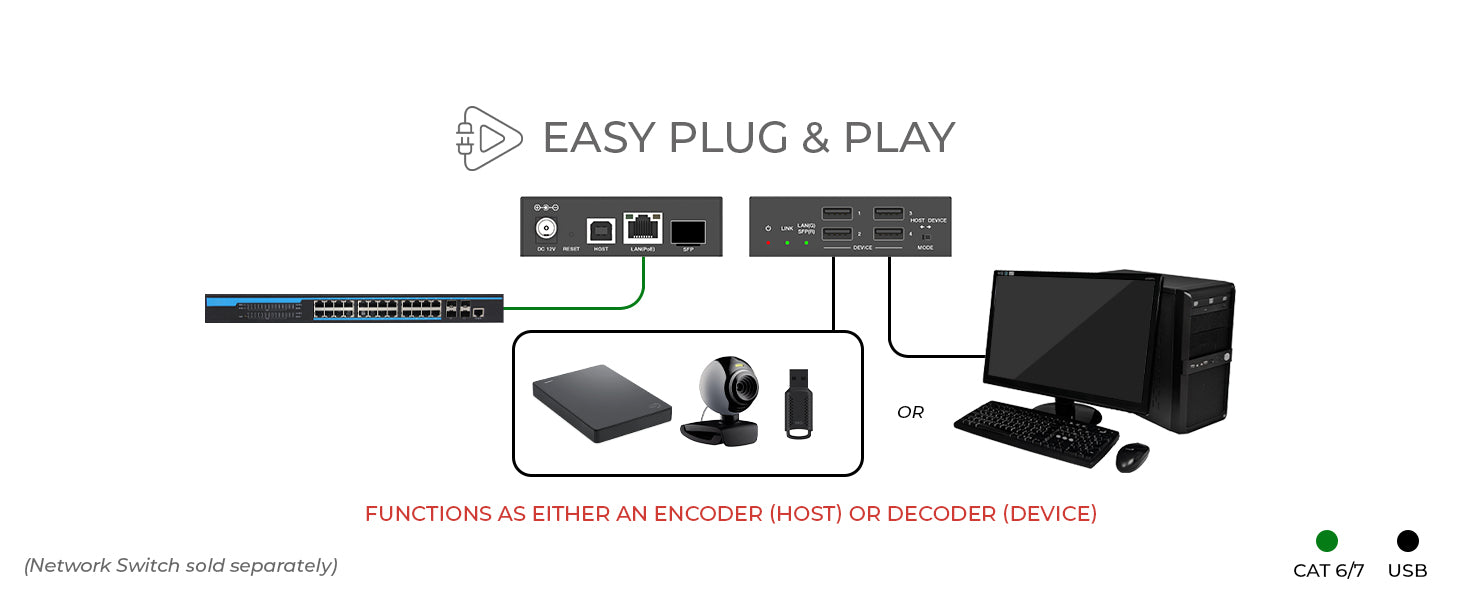

• Dual-Mode Operation – Switchable between a 4-port Device unit and a 1-port Host unit via a DIP switch.

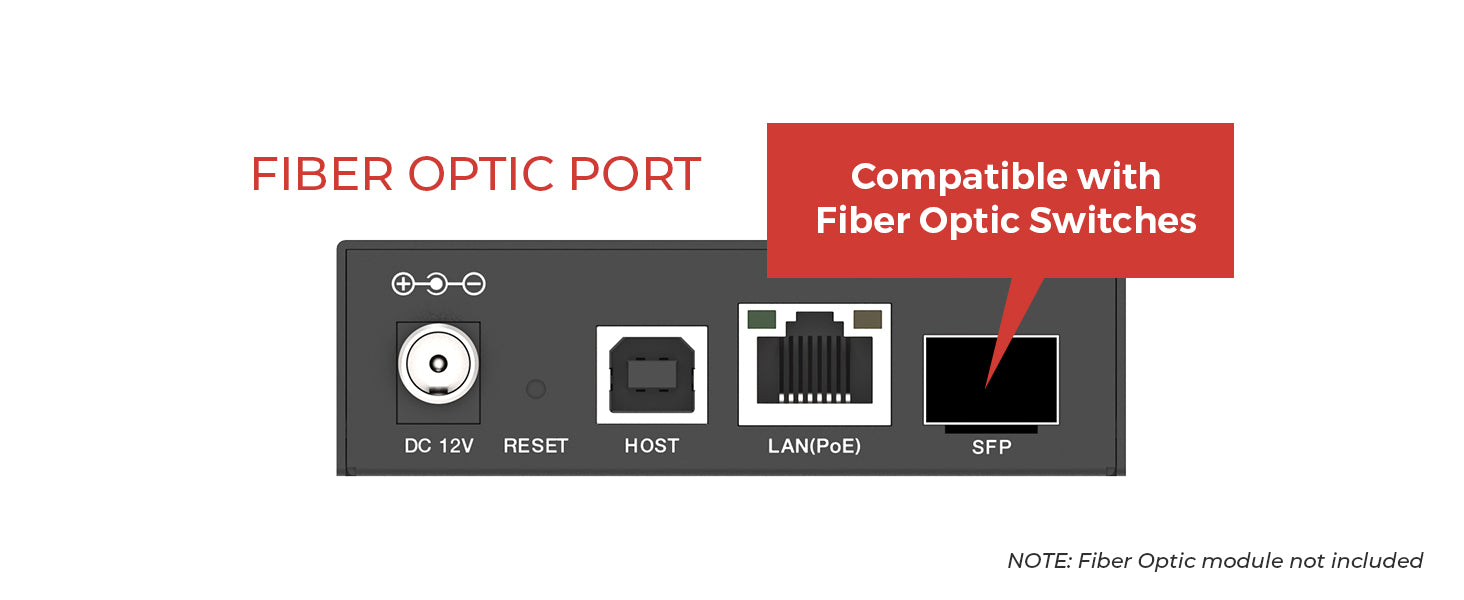

• Network Flexibility – Supports auto-switching between 1GbE copper and fiber SFP connections.

• High-Speed USB 2.0 – Delivers data transfer rates up to 480Mbps.

• Power over Ethernet – Simplified installation with 802.3at (Class 4) PoE support.

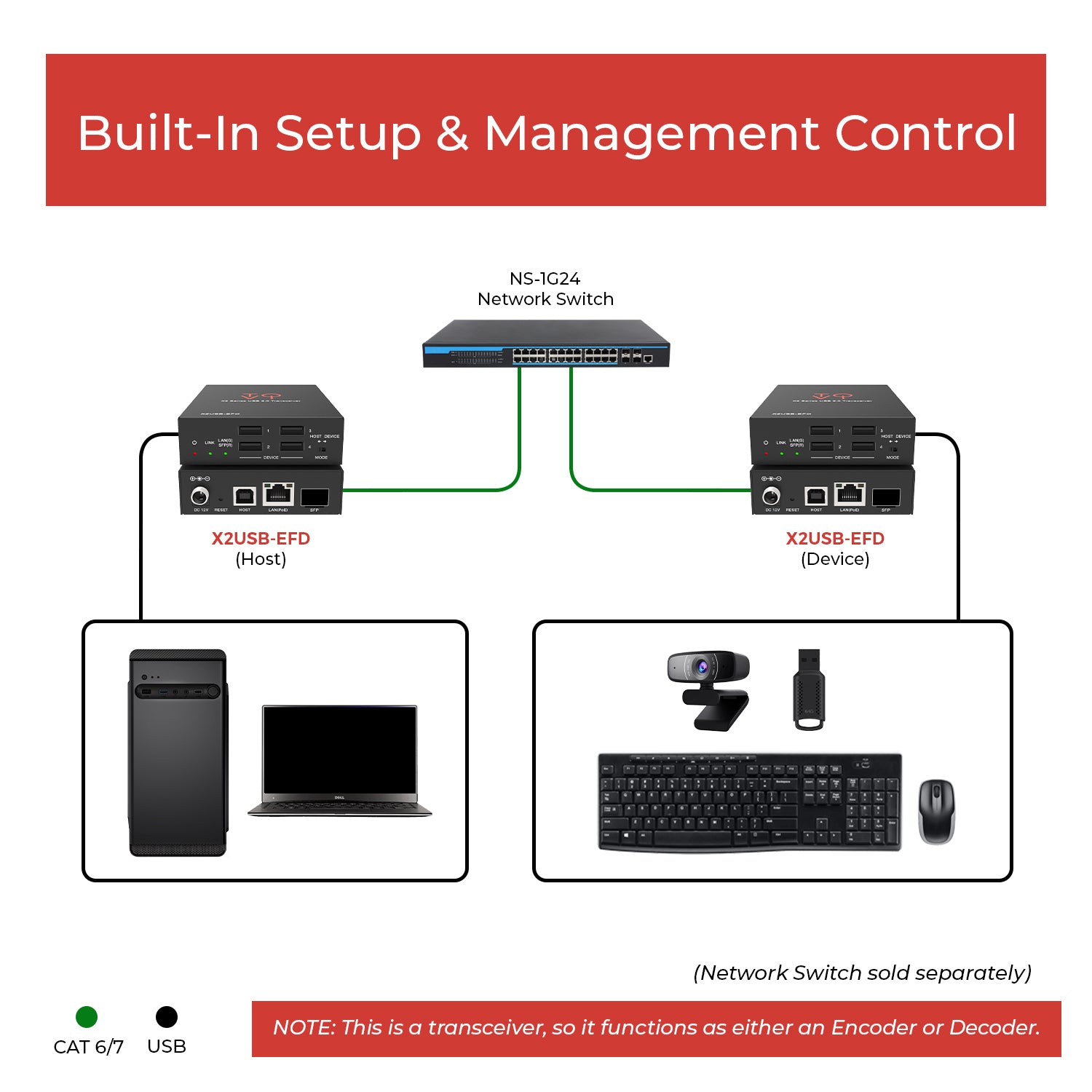

• K&M Extension – Supports keyboard, mouse & other peripheral control over IP in one-to-one and one-to-many configurations.

• Open API Integration– Enables custom control and integration with third-party software.

• Wide Device Compatibility – Works with printers, cameras, touch panels, and storage drives.

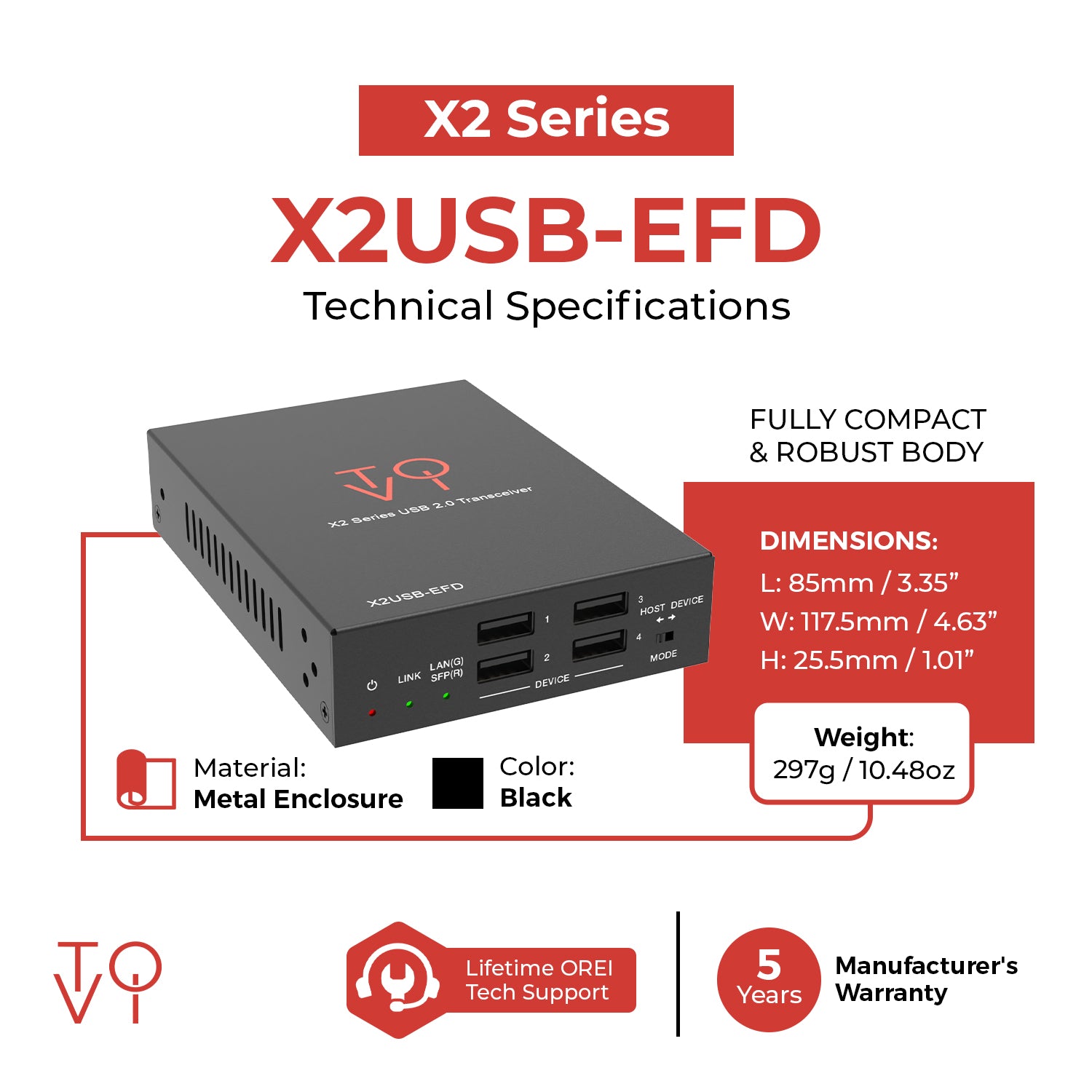

• Compact and Robust – Durable design suitable for demanding commercial installations

• Transmission Distance: Up to 100m (328 ft) over Ethernet and up to 10 km over fiber optics.

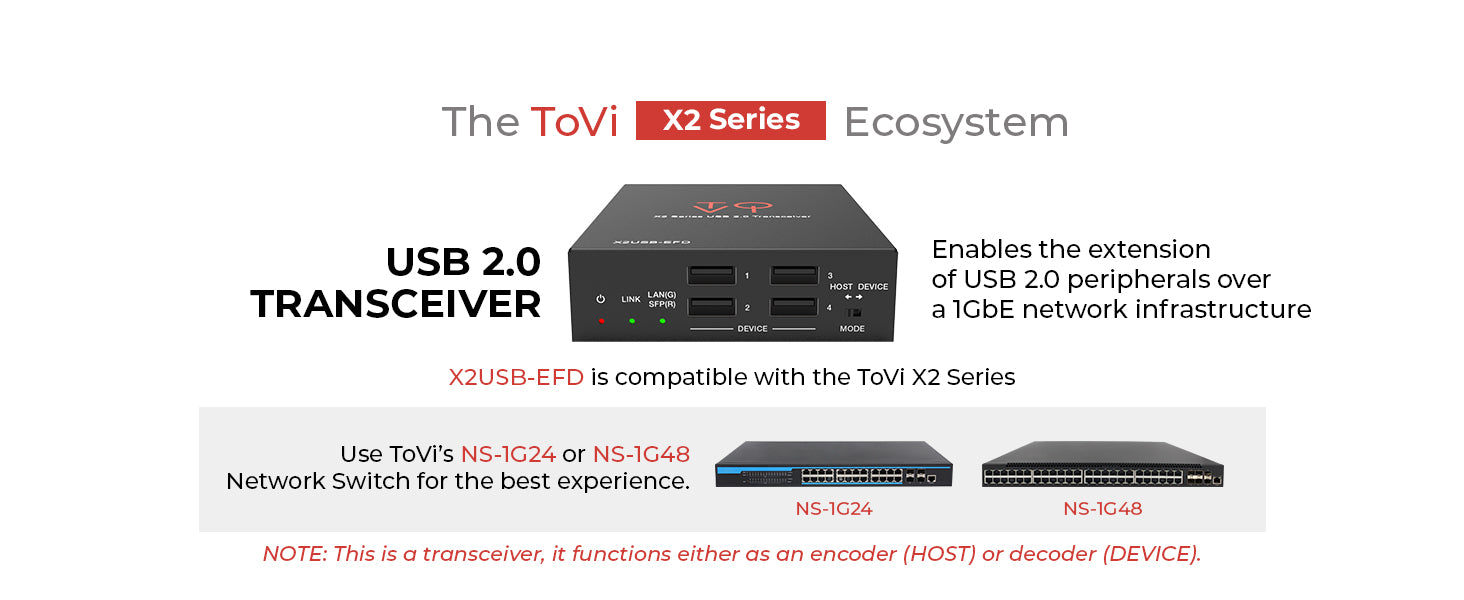

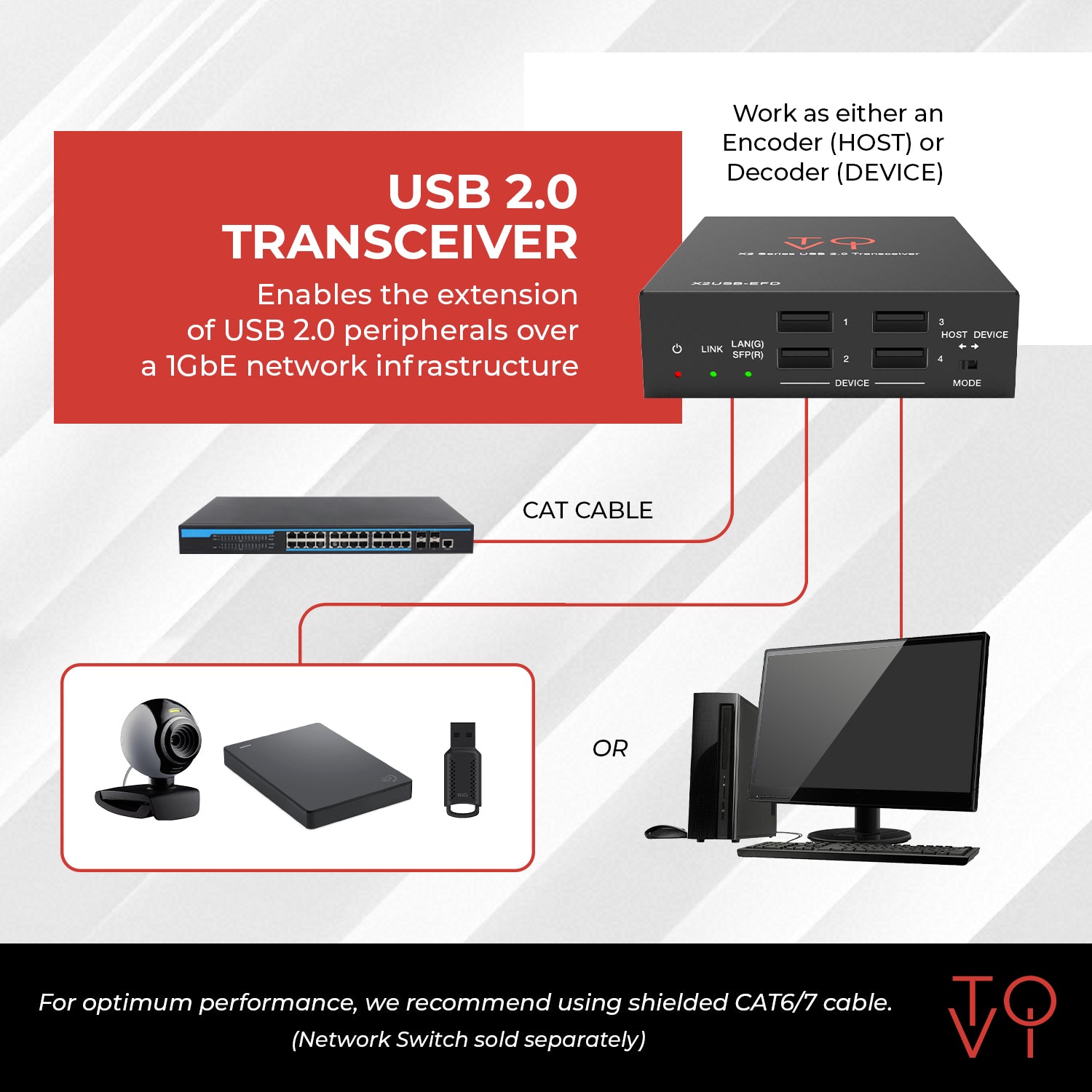

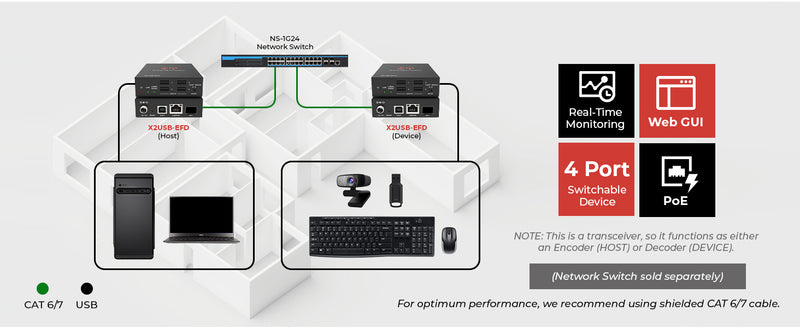

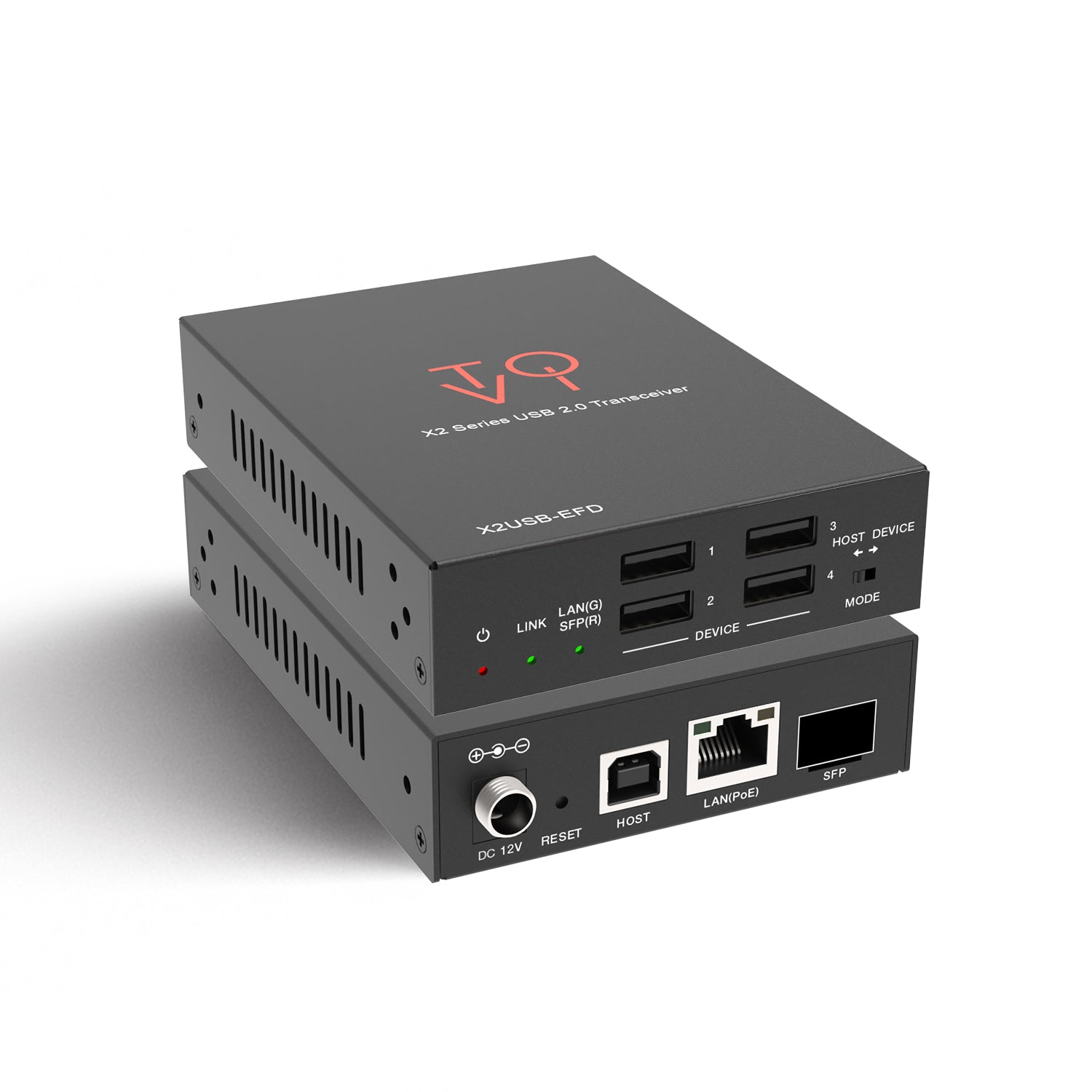

The X2USB-EFD is a versatile networking device that enables the extension of USB 2.0 peripherals over a 1GbE network infrastructure, supporting both copper and fiber connections with automatic failover. It operates in two configurable modes: as a Device unit with four Type-A ports for connecting peripherals like printers, cameras, and storage drives, or as a Host unit with one Type-B port for connecting to a computer. Featuring a data transfer rate of up to 480Mbps, it ensures high-speed connectivity for a wide range of USB devices. The extender simplifies installation with Power over Ethernet (PoE) support and offers advanced functionality, including one-to-one or one-to-many K&M extension and an Open API for seamless integration into third-party management systems. Its compact design makes it an ideal solution for commercial, industrial, and educational environments.
