1x4 HDMI Splitter: 1-in 4-out, UltraHD 4K, Auto-Downscale, EDID (UHD-PRO104)
- Split 1 HDMI Source to 4 identical displays - 3D Support
- Video resolution upto 4K@60Hz - 4K > 1080p downscaling function
- Dolby Vision, HDR - EDID Control
- Compliance: HDMI 2.0 - HDCP 2.2
OREI UHD-PRO 104: 1x4 HDMI Splitter
- Up to 4K@60Hz HDMI resolution supported)
- HDCP 2.2 compliant
- HDMI (Pixel Clock Rate: 25MHz ~ 600 MHz)
- HDR supported
- Down-scaling for 4K content to 1080p display
- EDID Management
- DTS HD, Dolby TrueHD lossless digital audio compliant
- No loss transmission with amplifier and equalizer function

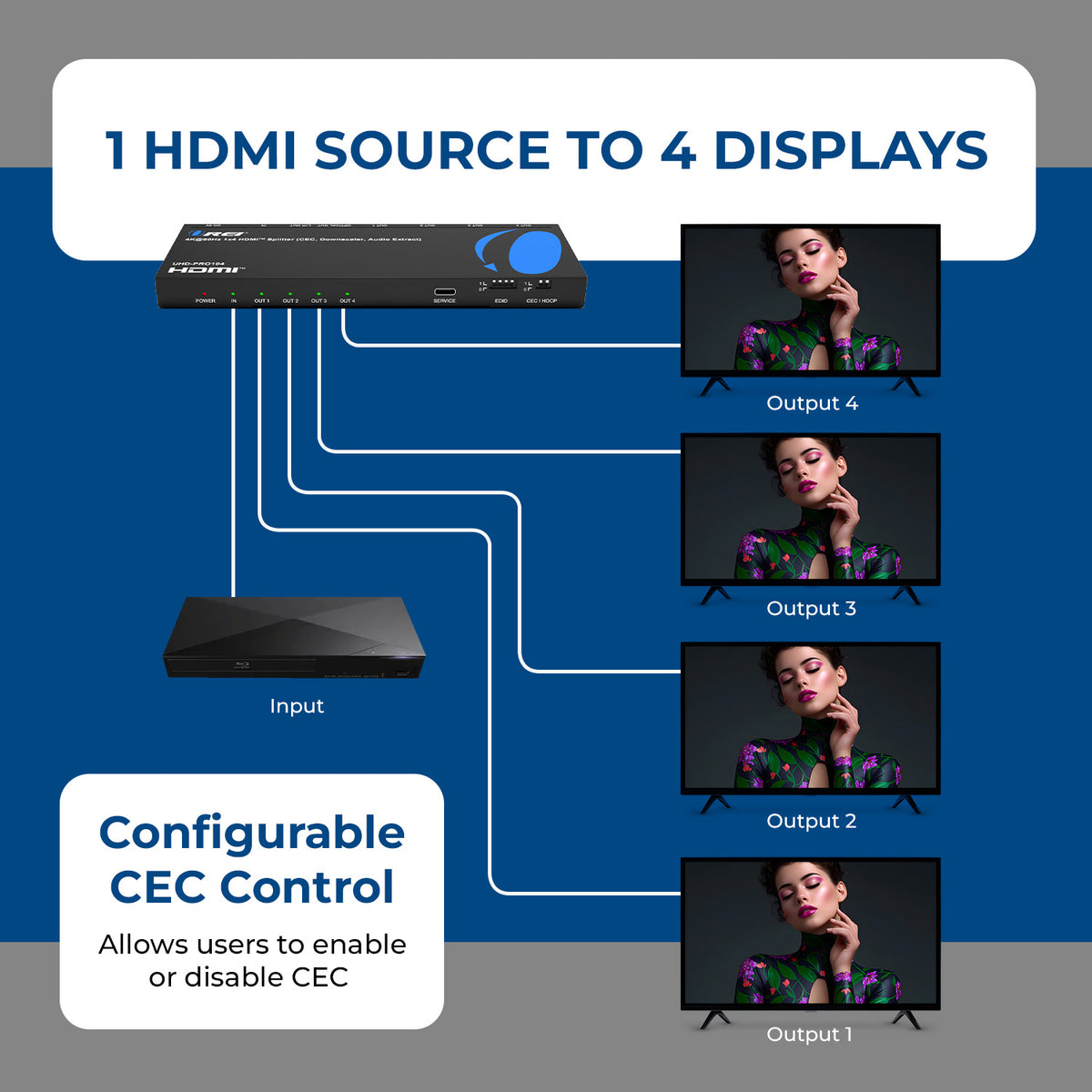

- Distribute same HDMI signal to up to 4 HDMI display devices

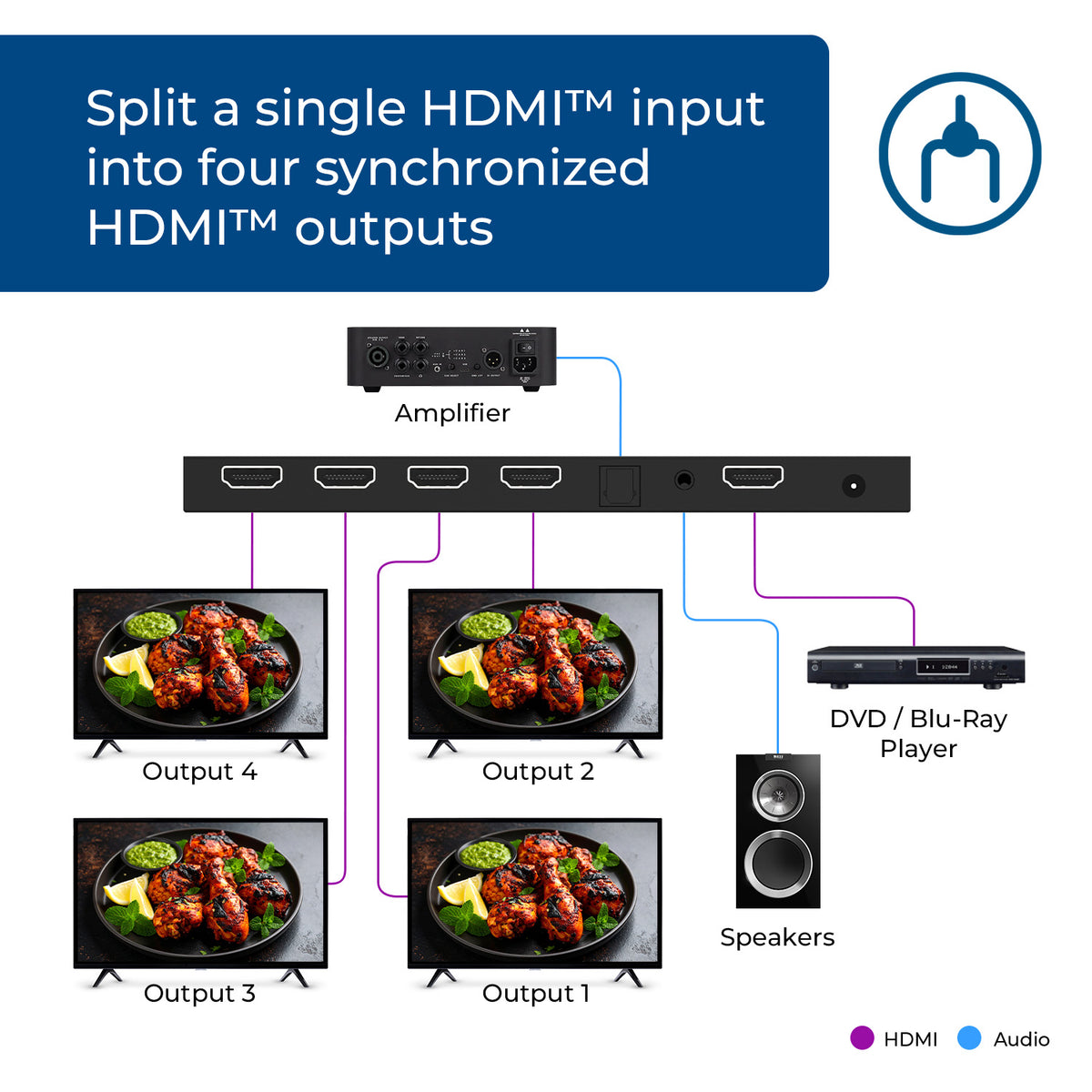

Few sample applications:
The OREI UHD-PRO104 is a reliable distribution amplifier powered splitter that will take HDMI signal up to 4Kx2K@60Hz, 1080p 3D and duplicate the signal to up to 2 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.
Compact, durable and easy to setup and operate. Ideal for trade show, conference room, lecture halls, bed room, living room, kitchen room and backyard.

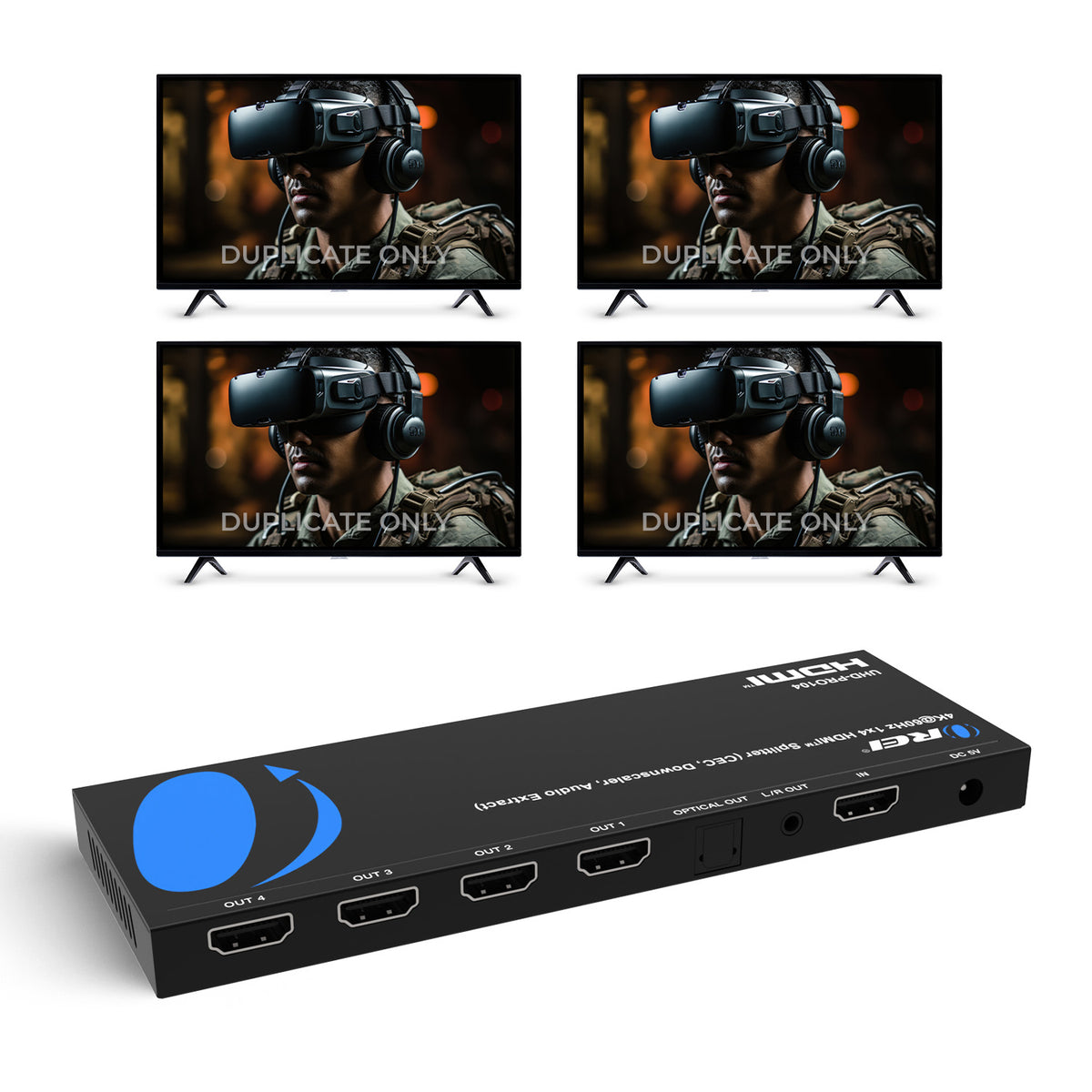

Please note that this splitter will duplicate the source to the four output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this splitter with high quality HDMI cables 30 feet or less.
EDID management switch – Set on COPY to copy the supported audio signal from HDMI output 1 to the HDMI output 4 display. Set on AUTO to automatically detect and send the same audio signal supported by both displays.
Resolutions: Up to ultra HD 4Kx2K@60Hz with 12bit, support 4Kx2K@30Hz with 24bit YCBCR 4:2:2. Deep Color up to 4K x 2K (3840 x 2160 @60Hz), 1080P (1920 x 1080@60Hz) & 3D Support.
Support All Audio: LPCM 7.1CH. Dolby TrueHD, and DTS-HD Master Audio Power Adapter: DC 5V/1A
