34% off

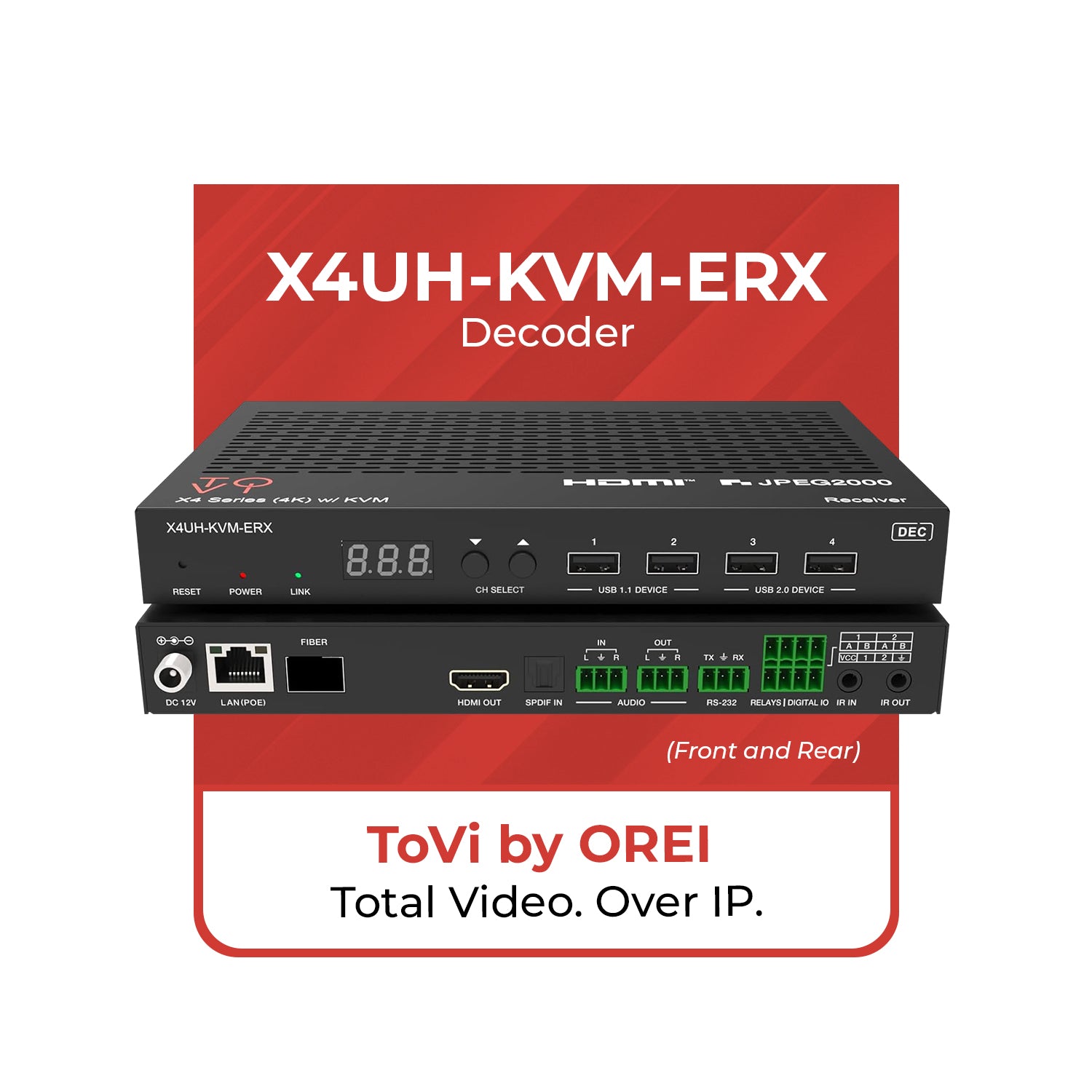

ToVi X4 4K Decoder (Video Wall, KVM, eARC) - X4UH-KVM-ERX

$529.00 USD $799.00
SKU: X4UH-KVM-ERX

  • HDCP 2.2 Compliant
  • 100m Signal Extension
  • LAN & Fiber Optic Extension Options

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Related Products
ToVi X4 4K Decoder (Video Wall, KVM, eARC) - X4UH-KVM-ERX
4K Video Wall & KVM (Decoder)
ToVi X4 4K Encoder (Video Wall, KVM, eARC) - X4UH-UC-ETX
4K Video Wall & USB-C KVM (Encoder)
ToVi X4 4K Wall Plate Encoder (Video Wall, KVM) - X4UH-WUC-ETX
4K Video Wall & USB-C KVM (Wall Plate Encoder)
ToVi X4 4K Encoder (Video Wall, KVM, eARC) - X4UH-KVM-ETX
4K Video Wall & KVM (Encoder)
ToVi X4 Series Video Network Hub / Control Box - X4UH-CB
X4 Series Control Box
Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in INDIA
Free shipping in INDIA
View details

Ultra-HD 4K AV Transmission

The ToVi X4UH-KVM-ERX is HDMI 2.0b and HDCP 2.2 compliant, delivering pristine 4K@60Hz (4:4:4) video with 18Gbps bandwidth for uncompromised ultra-high-definition quality. It simultaneously transmits video, analog and digital audio, IR, RS-232, CEC, and USB over Ethernet, ensuring full-featured AV-over-IP operation for professional environments.

Long-Distance, Flexible Connectivity

Extend AV signals up to 328 ft (100 m) over CAT6/6A/7 cables, with integrated copper and fiber ports providing versatile transmission options. Audio routing supports ARC/eARC, S/PDIF, and analog audio return, while front panel buttons and LED displays allow quick and user-friendly channel configuration.

Advanced Control and Video Wall Management

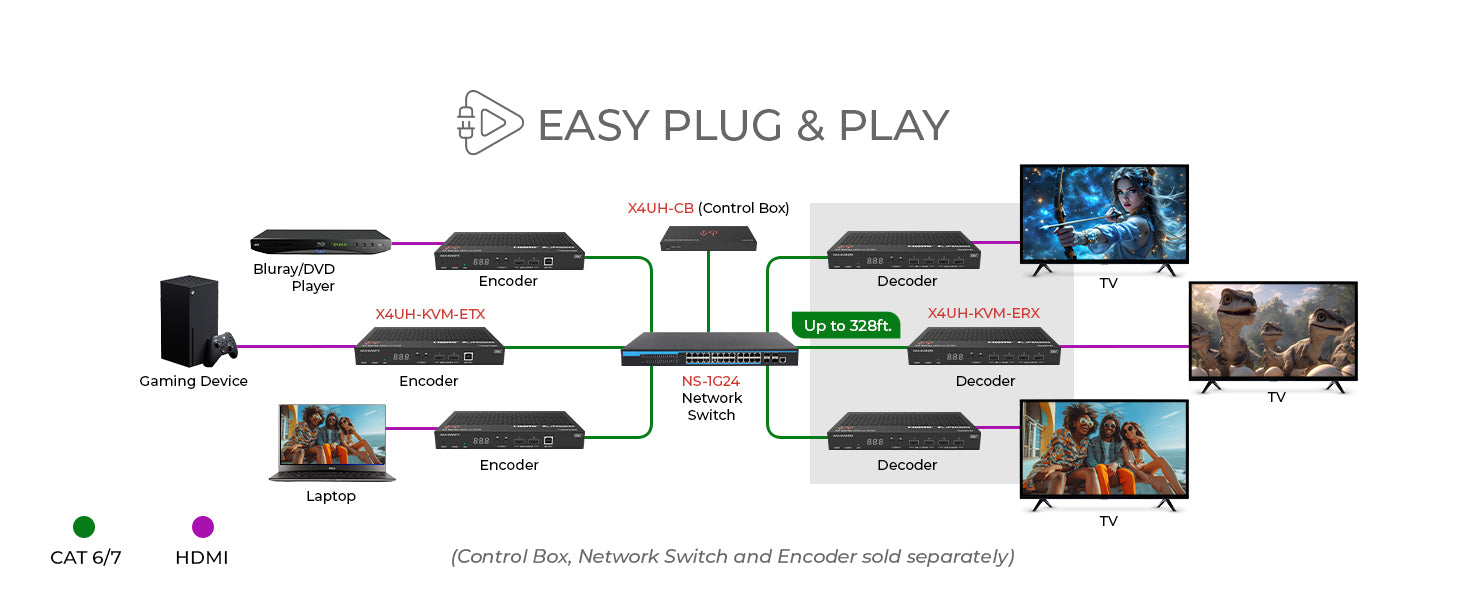

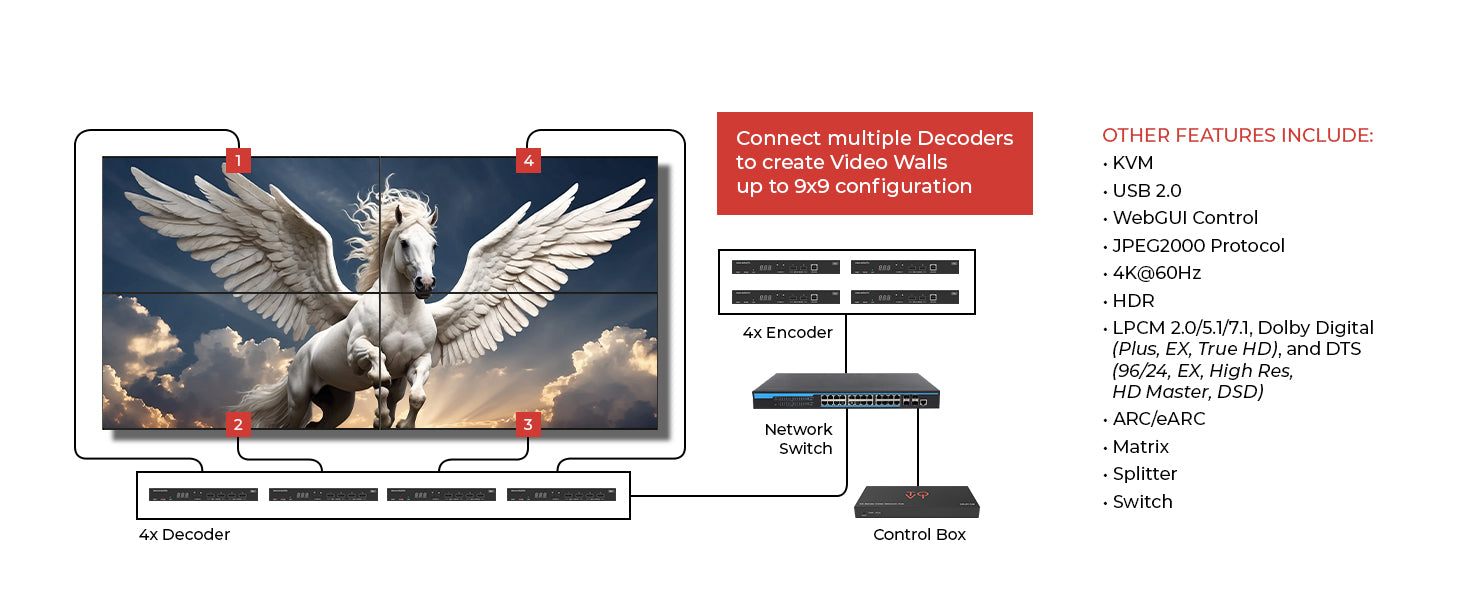

The X4UH-KVM-ERX includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and video wall setups up to 9×9. Intelligent video wall management with MJPEG sub-stream preview ensures precise monitoring and operational efficiency, while control can be centralized through the built-in web interface, Telnet, SSH, or the X4UH-CB Network Hub.

Comprehensive Audio and Smart Networking

Wide audio format support includes LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). PoE (1G Ethernet) simplifies installation and power delivery, and smart network design ensures flexible, scalable, and reliable deployment for commercial, broadcast, and professional AV applications.

ToVi X4 Series (4K) w/ KVM

Key Features:
  •  HDCP 2.2 Compliant with 18Gbps Bandwidth – Supports pristine 4K@60Hz (4:4:4) video transmission in compliance with HDMI 2.0b standards.
  • Long-Distance Extension – Extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables.
  • Comprehensive Signal Transmission – Simultaneously transmits video, analog/digital audio, IR, RS-232, CEC, and USB over Ethernet
  • Integrated Copper and Fiber Ports – Offers versatile connectivity options within one compact unit.
  • Audio Return Support – Compatible with ARC/eARC, S/PDIF, and analog audio return for flexible audio management.
  • User-Friendly Channel Configuration – Front panel buttons and LED screen facilitate straightforward setup.
  • Contact Control Ports – Includes 2-channel relay and 2-channel I/O ports for diverse control applications.

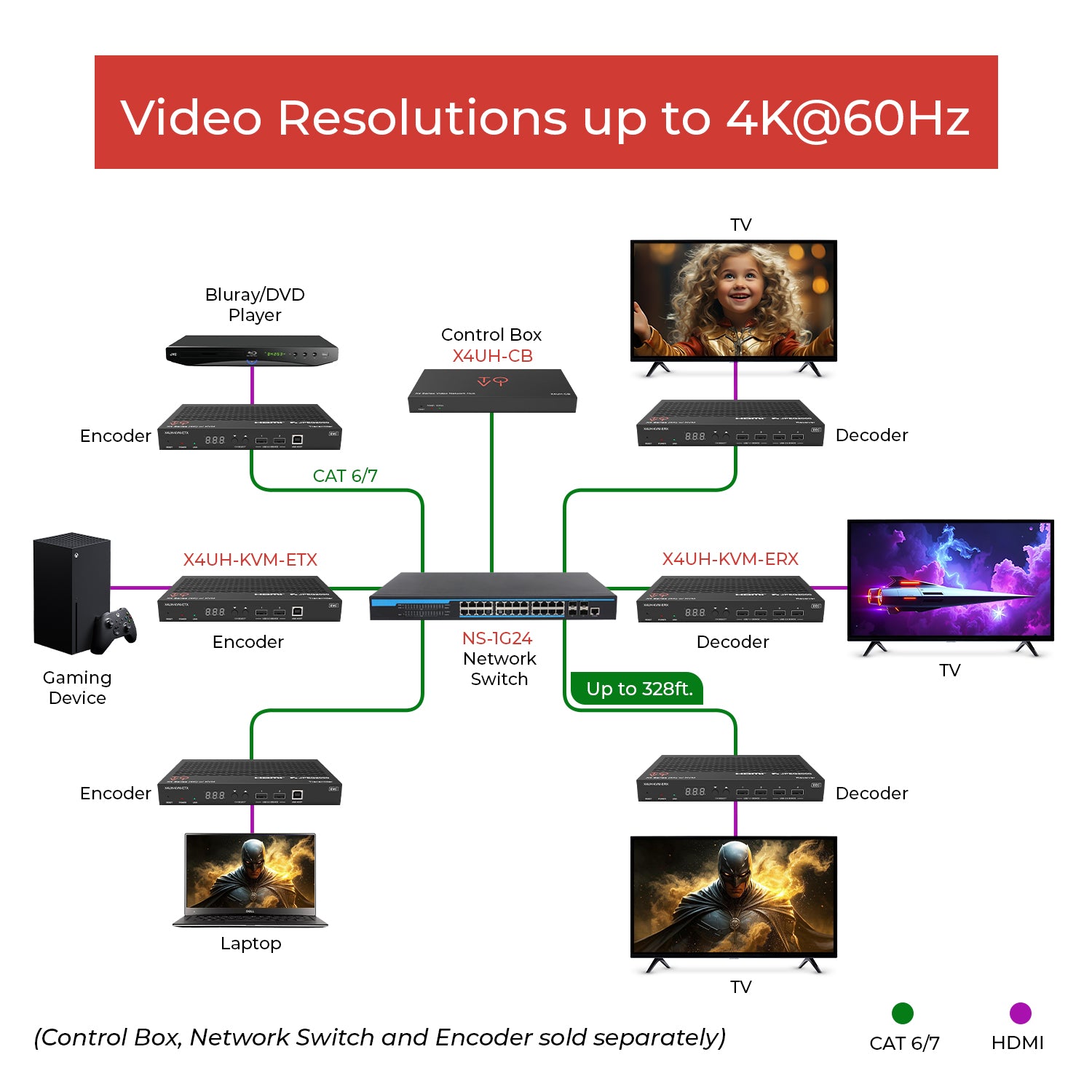

  • Advanced Signal Routing – Supports unicast, multicast, point-to-point, matrix switching, and video wall functionality (up to 9x9).
  • Intelligent Video Wall Management – Features video wall class management and MJPEG sub-stream real-time preview.
  • 1G Ethernet with PoE Support – Simplifies installation and power delivery over standard network infrastructure.
  • Robust Control Interfaces – Built-in web interface, Telnet, and SSH for flexible device management. Control is made even easier through the X4UH-CB Network Hub.
  • Wide Audio Format Support – Compatible with LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD).
  • Smart Networking Design – Ensures easy, flexible installation for diverse professional AV environments

The X4UH-KVM-ERX is a versatile HDMI extender and AV-over-IP solution designed for high-performance, long-distance signal transmission. Fully compliant with HDCP 2.2 and HDMI 2.0b, it supports 4K@60Hz (4:4:4) video with up to 18Gbps bandwidth, delivering uncompromised ultra-high-definition quality.

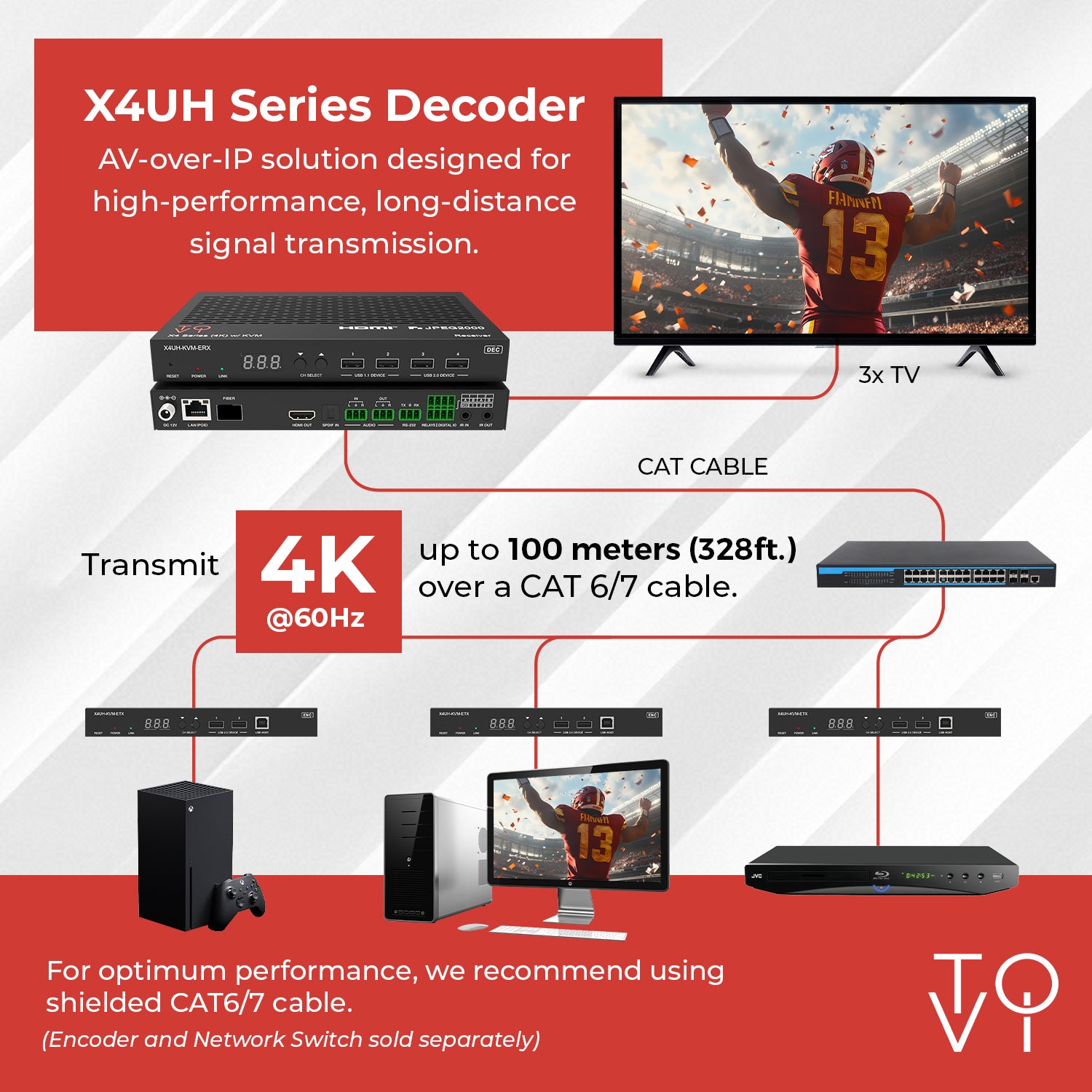

It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables, transmitting video, analog and digital audio, IR, RS-232, CEC, and USB data seamlessly over Ethernet.

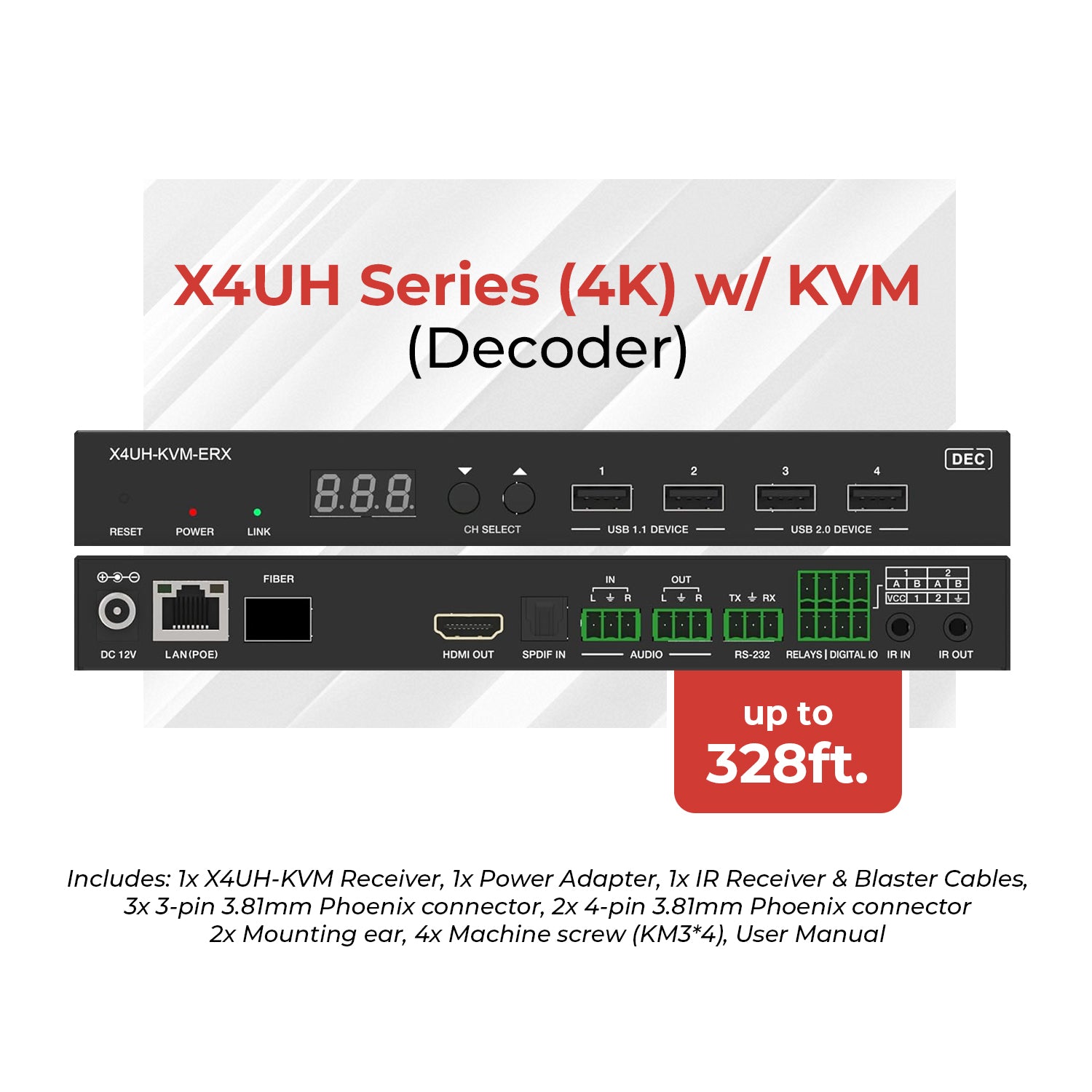

This compact unit integrates copper and fiber ports, supporting ARC/eARC, S/PDIF, and analog audio return channels for flexible audio routing. Channel configuration is simplified via front panel buttons and an LED display.

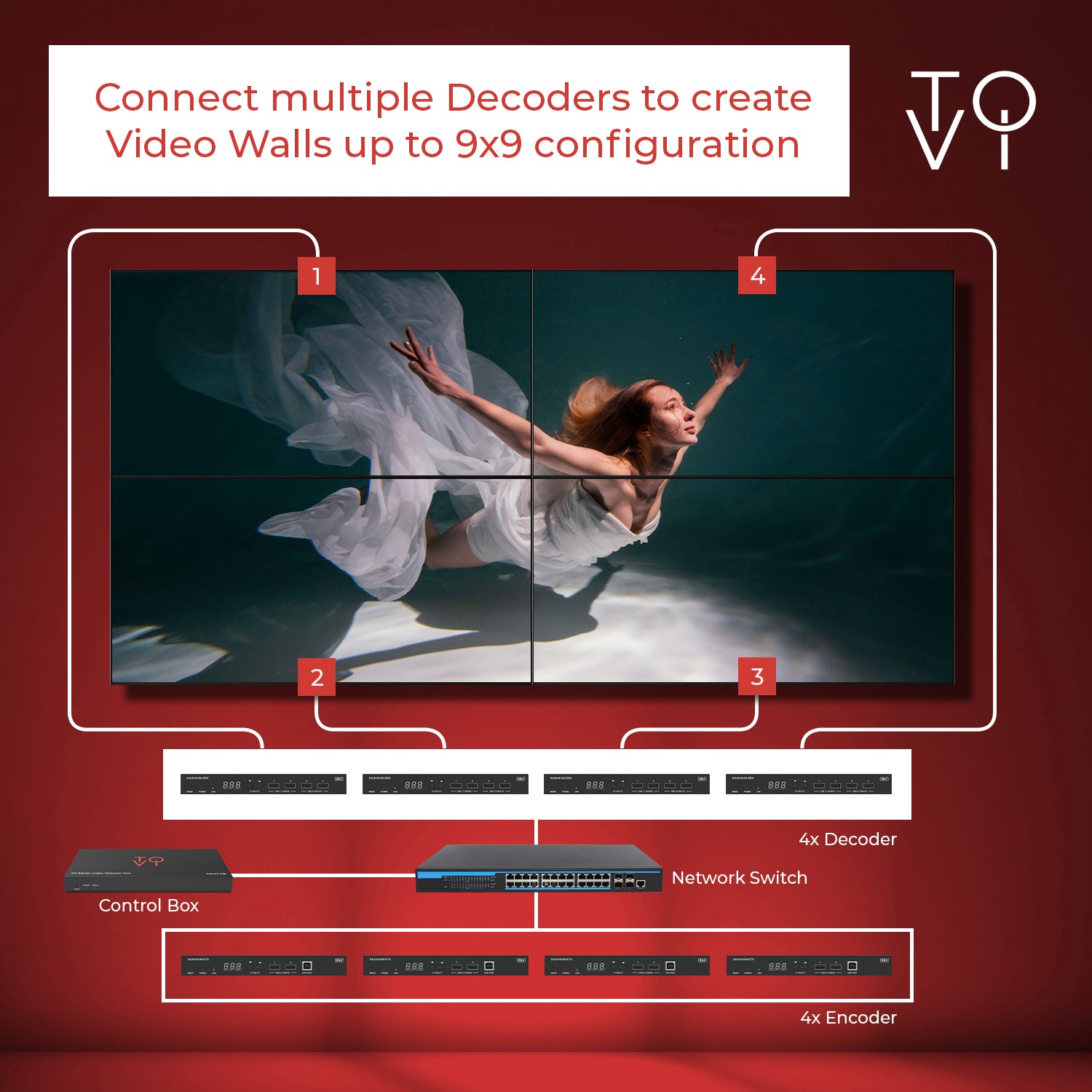

The X4UH-KVM includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and scalable video wall deployments up to 9x9 setup. Intelligent video wall class management and real-time MJPEG sub-stream preview enhance monitoring and operational efficiency.

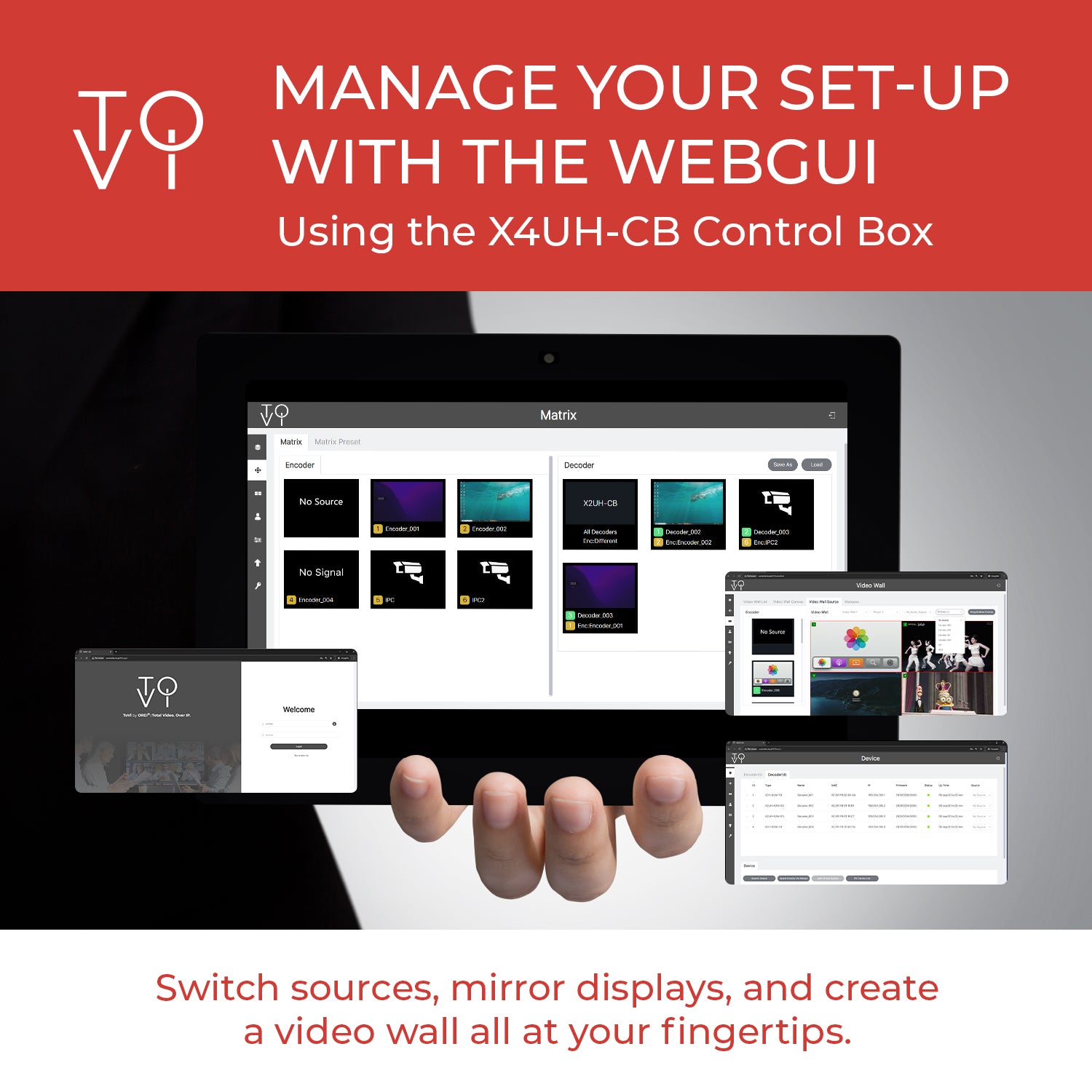

Operating on a 1G Ethernet network with PoE support, the device offers comprehensive control and configuration through a built-in web interface, Telnet, and SSH. Control is made easier using the X4UH-CB to control all your X4UH Series devices on a single network. It supports a broad range of HDMI audio formats, including LPCM 2.0/5.1/7.1, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). The smart networking design ensures easy, flexible installation for commercial AV, broadcast, and professional environments.
