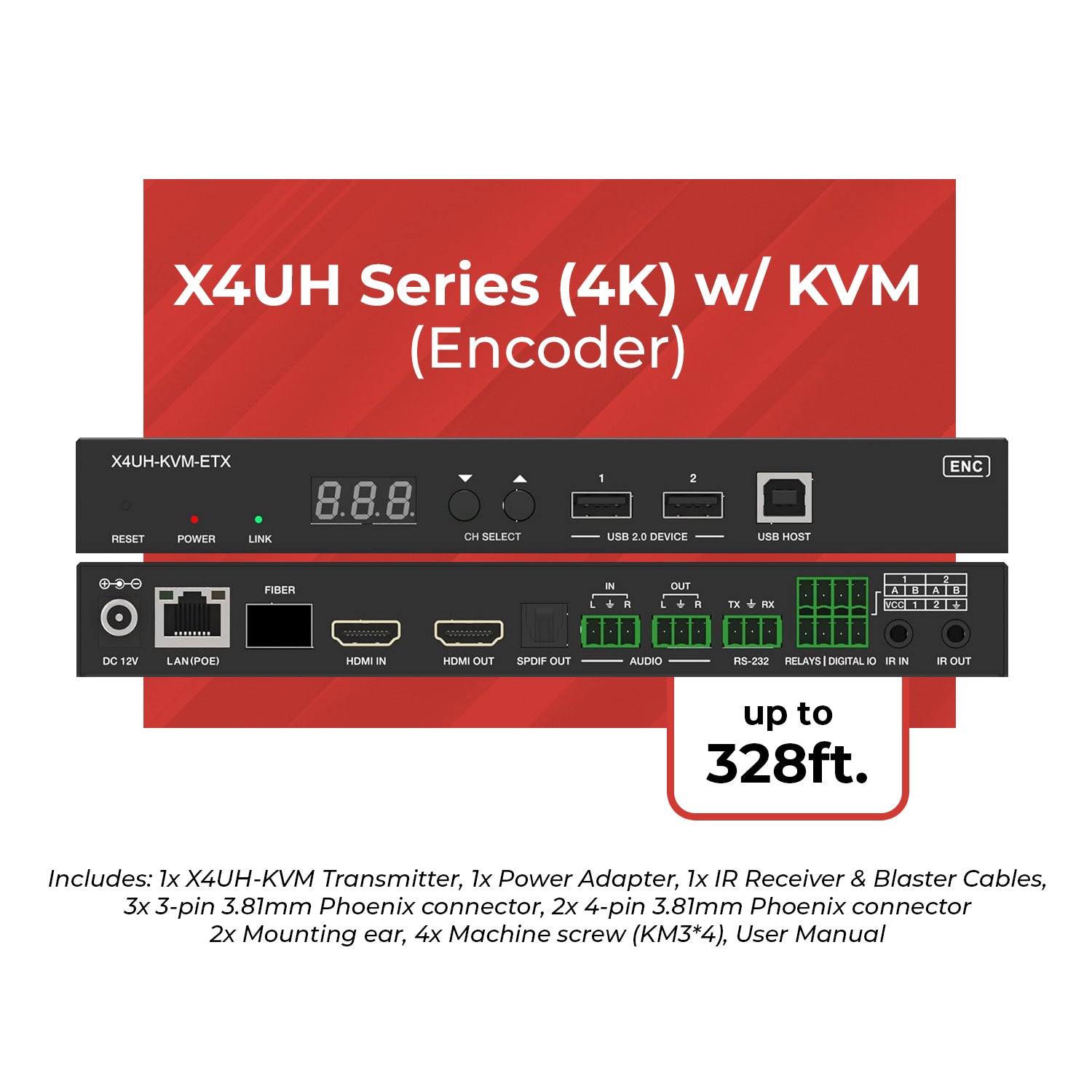

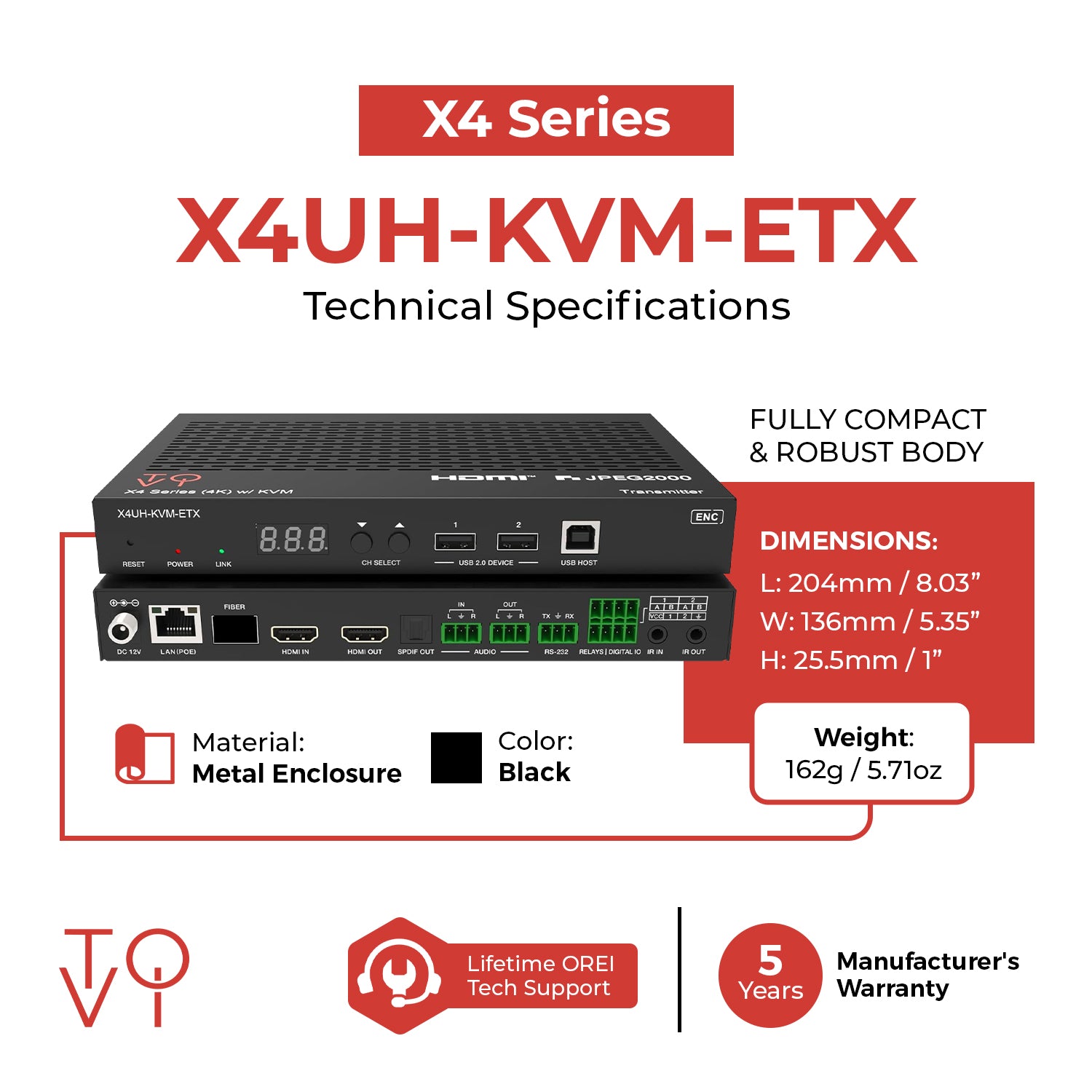

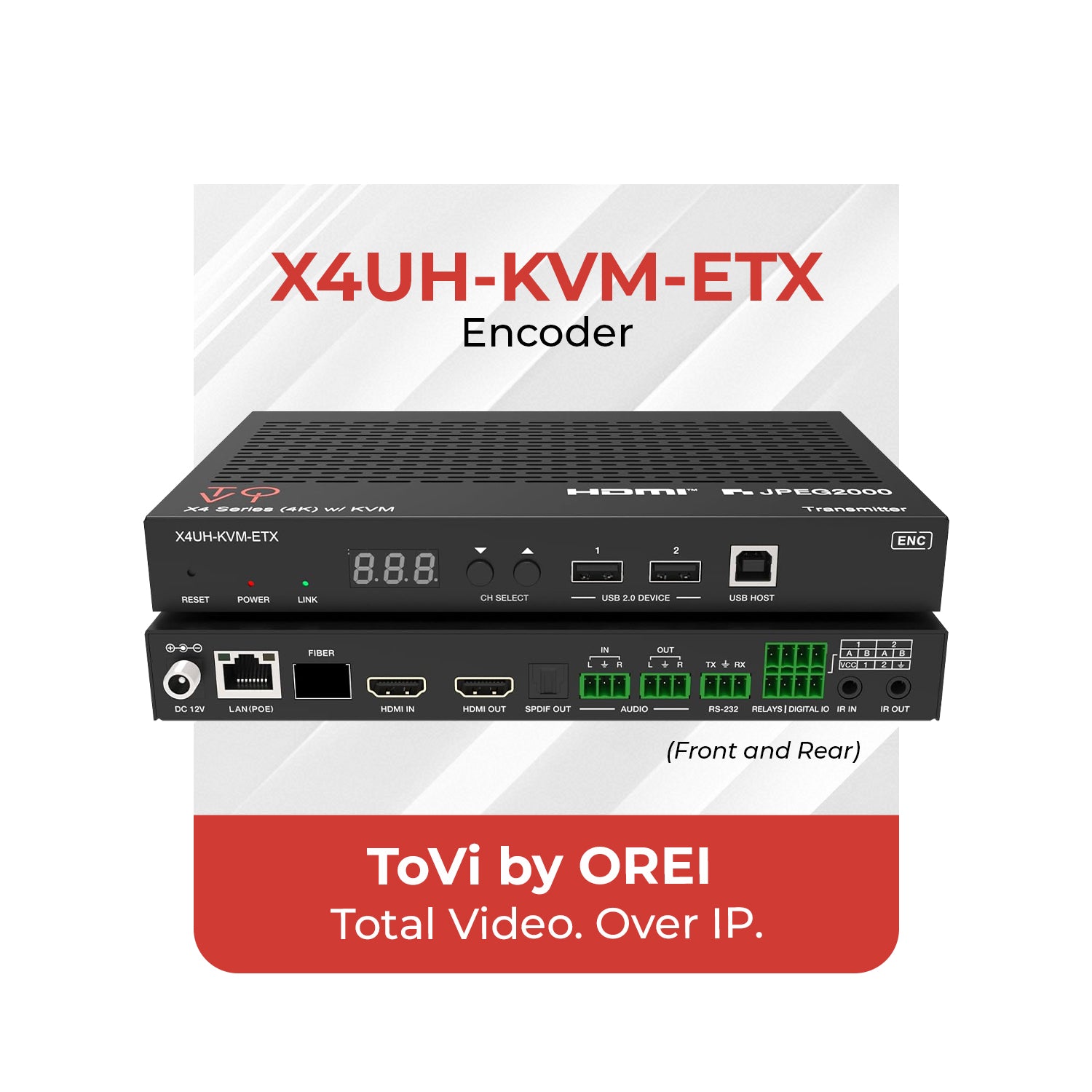

ToVi X4 4K Encoder (Video Wall, KVM, eARC) - X4UH-KVM-ETX

$529.00 USD $799.00
SKU: X4UH-KVM-ETX

  • HDCP 2.2 Compliant
  • 100m Signal Extension
  • Flexible AV Routing

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Related Products
ToVi X4 4K Encoder (Video Wall, KVM, eARC) - X4UH-KVM-ETX
4K Video Wall & KVM (Encoder)
ToVi X4 4K Decoder (Video Wall, KVM, eARC) - X4UH-KVM-ERX
4K Video Wall & KVM (Decoder)
ToVi X4 4K Encoder (Video Wall, KVM, eARC) - X4UH-UC-ETX
4K Video Wall & USB-C KVM (Encoder)
ToVi X4 4K Wall Plate Encoder (Video Wall, KVM) - X4UH-WUC-ETX
4K Video Wall & USB-C KVM (Wall Plate Encoder)
ToVi X4 Series Video Network Hub / Control Box - X4UH-CB
X4 Series Control Box
Add To Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
Free shipping in INDIA
Free shipping in INDIA
View details

Ultra-HD 4K AV Transmission

The ToVi X4UH-KVM-ETX supports HDMI 2.0b and HDCP 2.2, delivering pristine 4K@60Hz (4:4:4) video with 18Gbps bandwidth for uncompromised ultra-high-definition quality. It transmits video, analog/digital audio, IR, RS-232, CEC, and USB simultaneously over Ethernet, making it ideal for professional AV-over-IP deployments.

Long-Distance, Flexible Connectivity

Extend AV signals up to 328 ft (100 m) over CAT6/6A/7 cables, with integrated copper and fiber ports for versatile transmission options. Audio routing is supported through ARC/eARC, S/PDIF, and analog return channels, while front panel buttons and LED displays simplify channel configuration for fast, user-friendly setup.

Advanced Control and Video Wall Management

The X4UH-KVM-ETX includes two relay channels and two I/O ports for contact control and supports unicast, multicast, point-to-point, matrix switching, and video wall deployments up to 9×9. Intelligent video wall management with MJPEG sub-stream preview ensures precise monitoring, while control via web interface, Telnet, SSH, or the X4UH-CB Network Hub provides centralized, flexible operation.

Comprehensive Audio and Smart Networking

Wide audio format support includes LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). PoE (1G Ethernet) simplifies installation and power delivery, and the smart networking design ensures quick, modular, and reliable deployment in commercial, broadcast, and professional AV environments.

ToVi X4 Series (4K) w/ KVM

Key Features:
  •  HDCP 2.2 Compliant with 18Gbps Bandwidth – Supports pristine 4K@60Hz (4:4:4) video transmission in compliance with HDMI 2.0b standards.

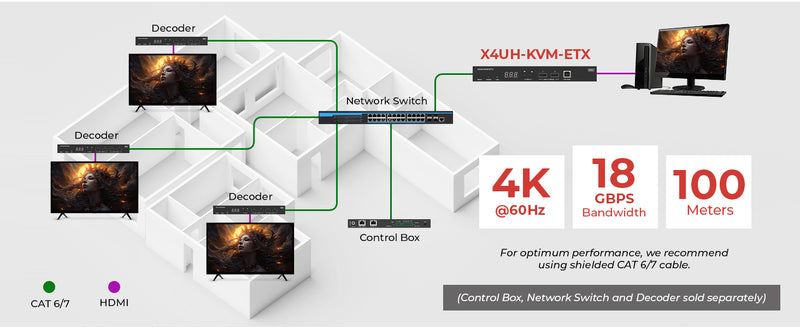

  • Long-Distance Extension – Extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables.
  • Comprehensive Signal Transmission – Simultaneously transmits video, analog/digital audio, IR, RS-232, CEC, and USB over Ethernet

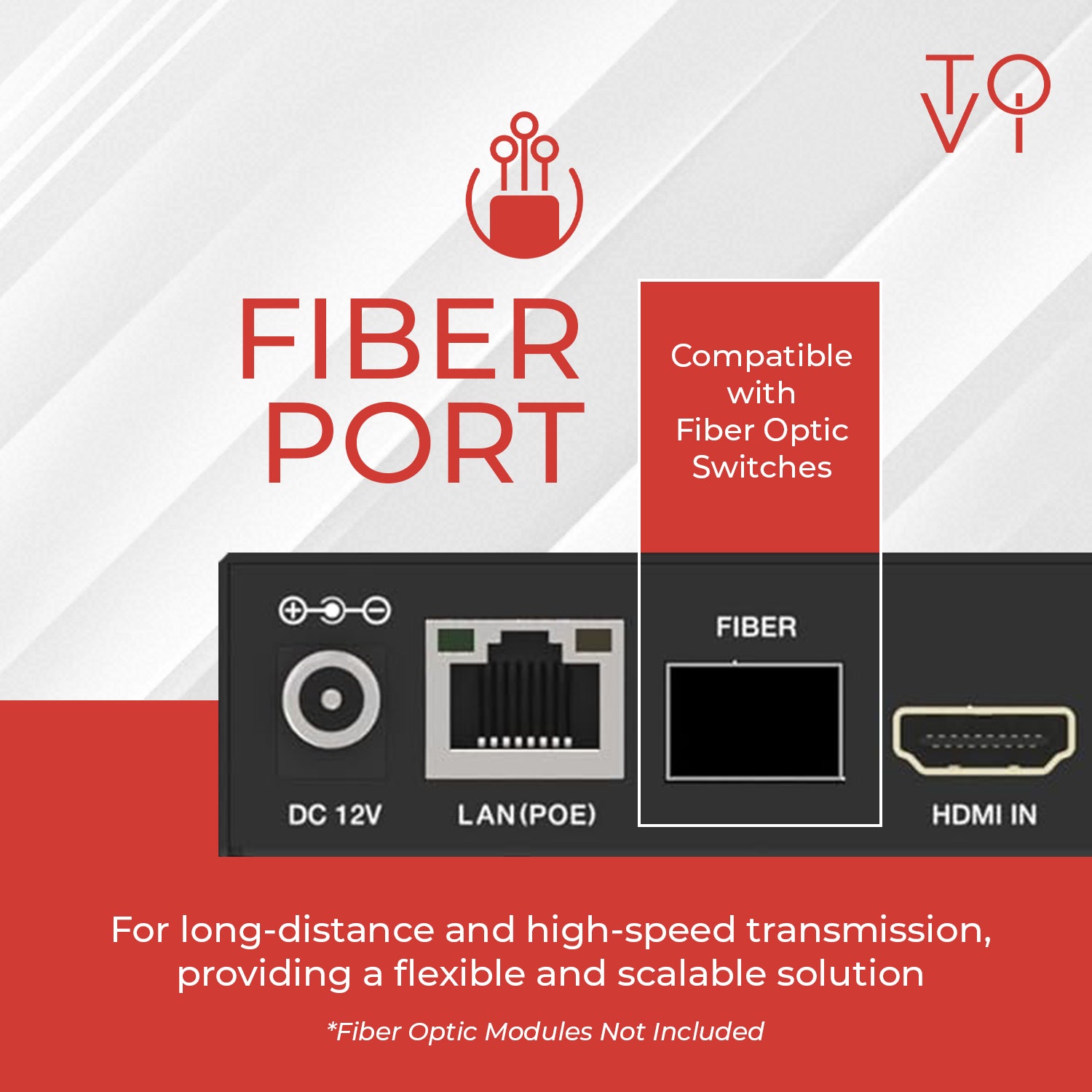

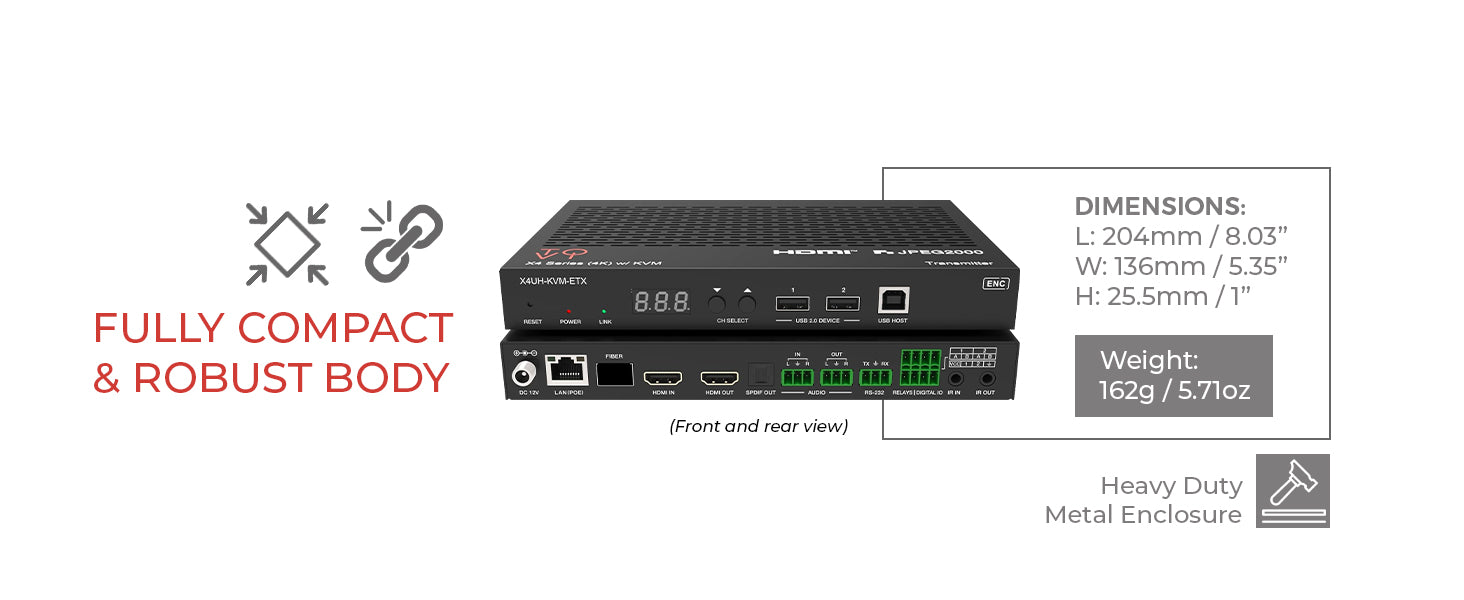

  • Integrated Copper and Fiber Ports – Offers versatile connectivity options within one compact unit.
  • Audio Return Support – Compatible with ARC/eARC, S/PDIF, and analog audio return for flexible audio management.
  • User-Friendly Channel Configuration – Front panel buttons and LED screen facilitate straightforward setup.
  • Contact Control Ports – Includes 2-channel relay and 2-channel I/O ports for diverse control applications.

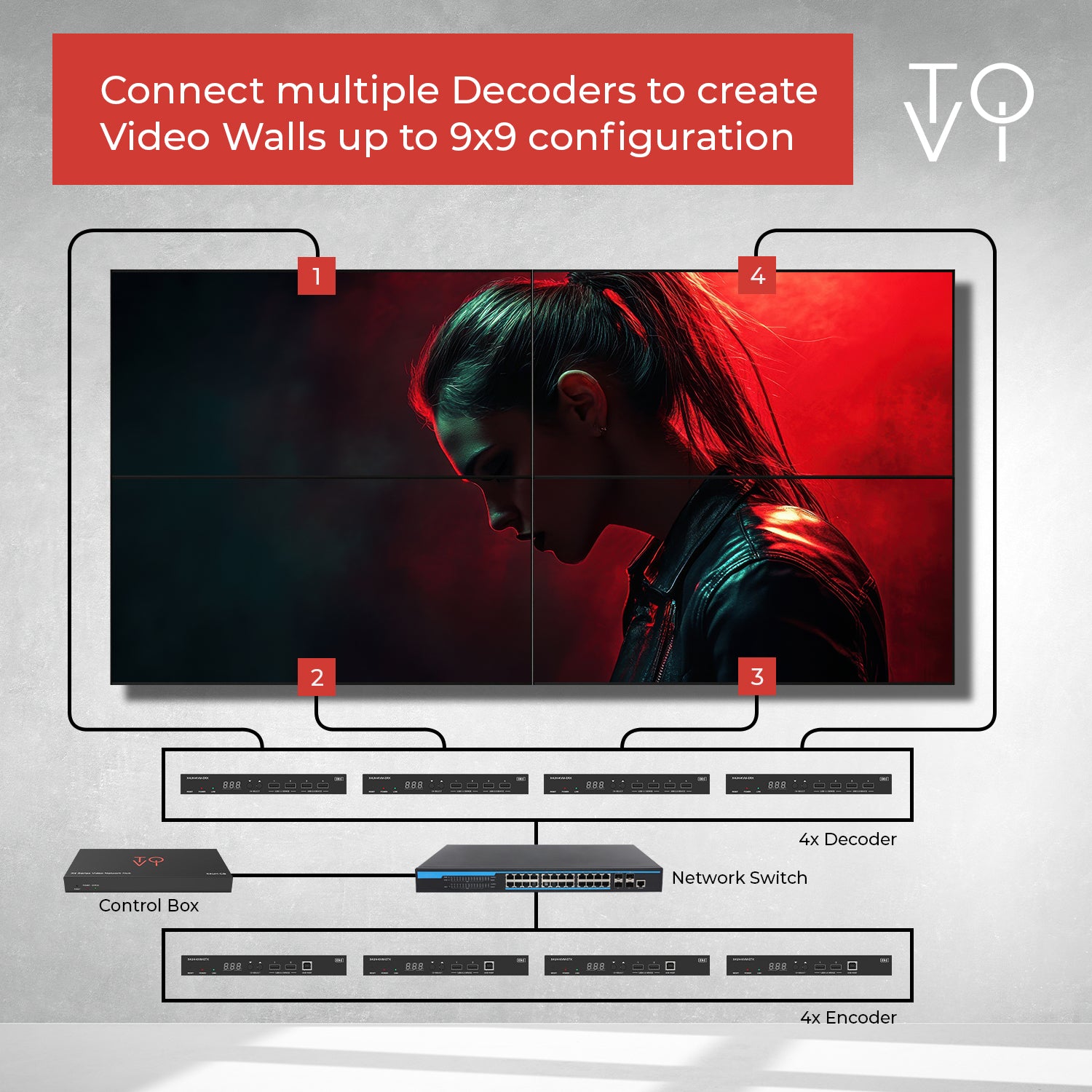

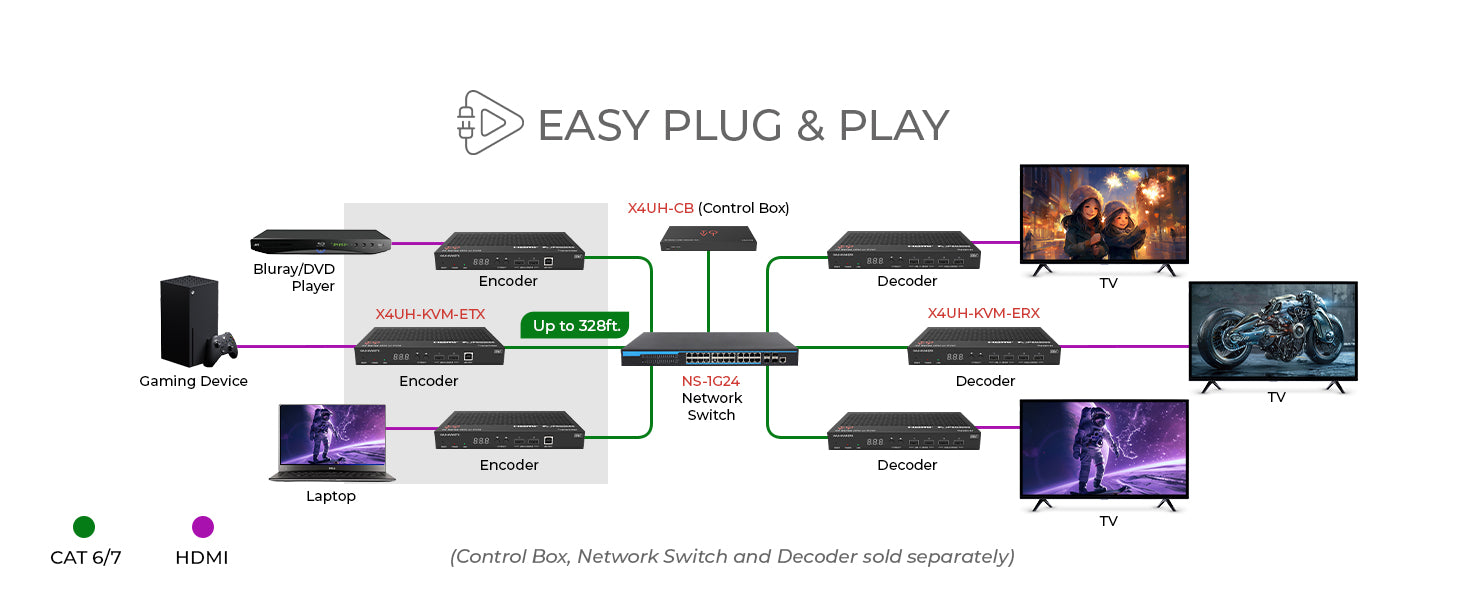

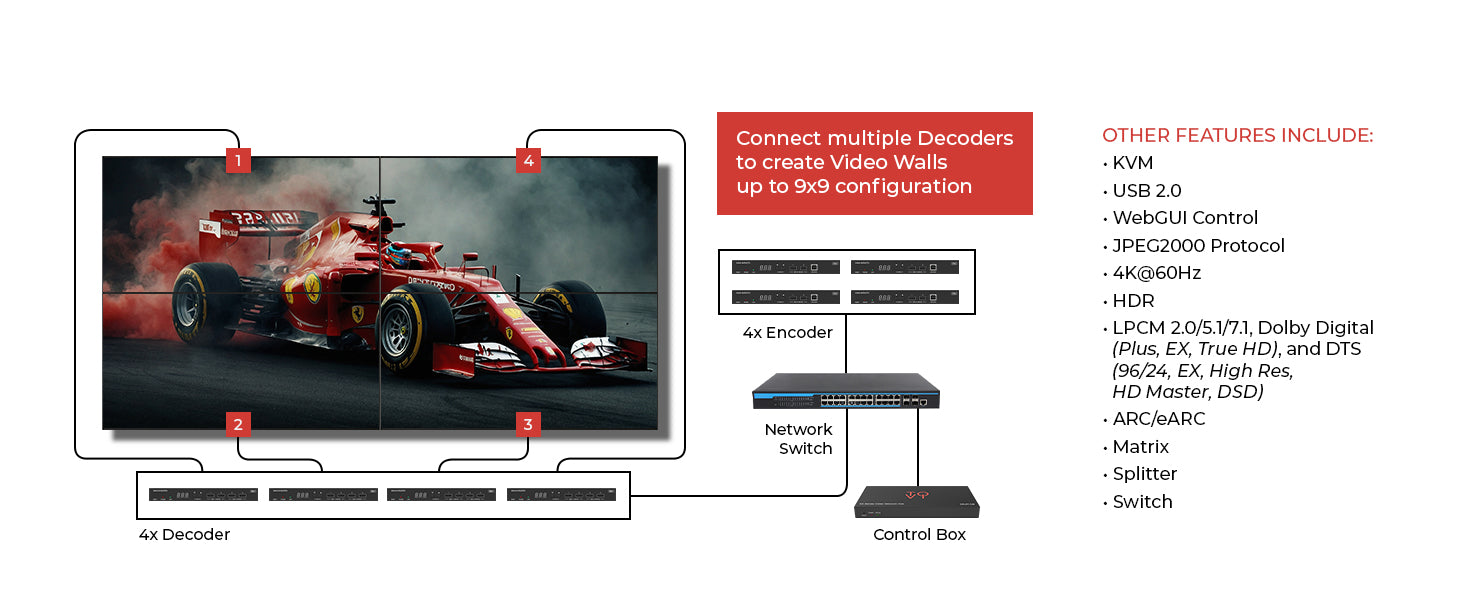

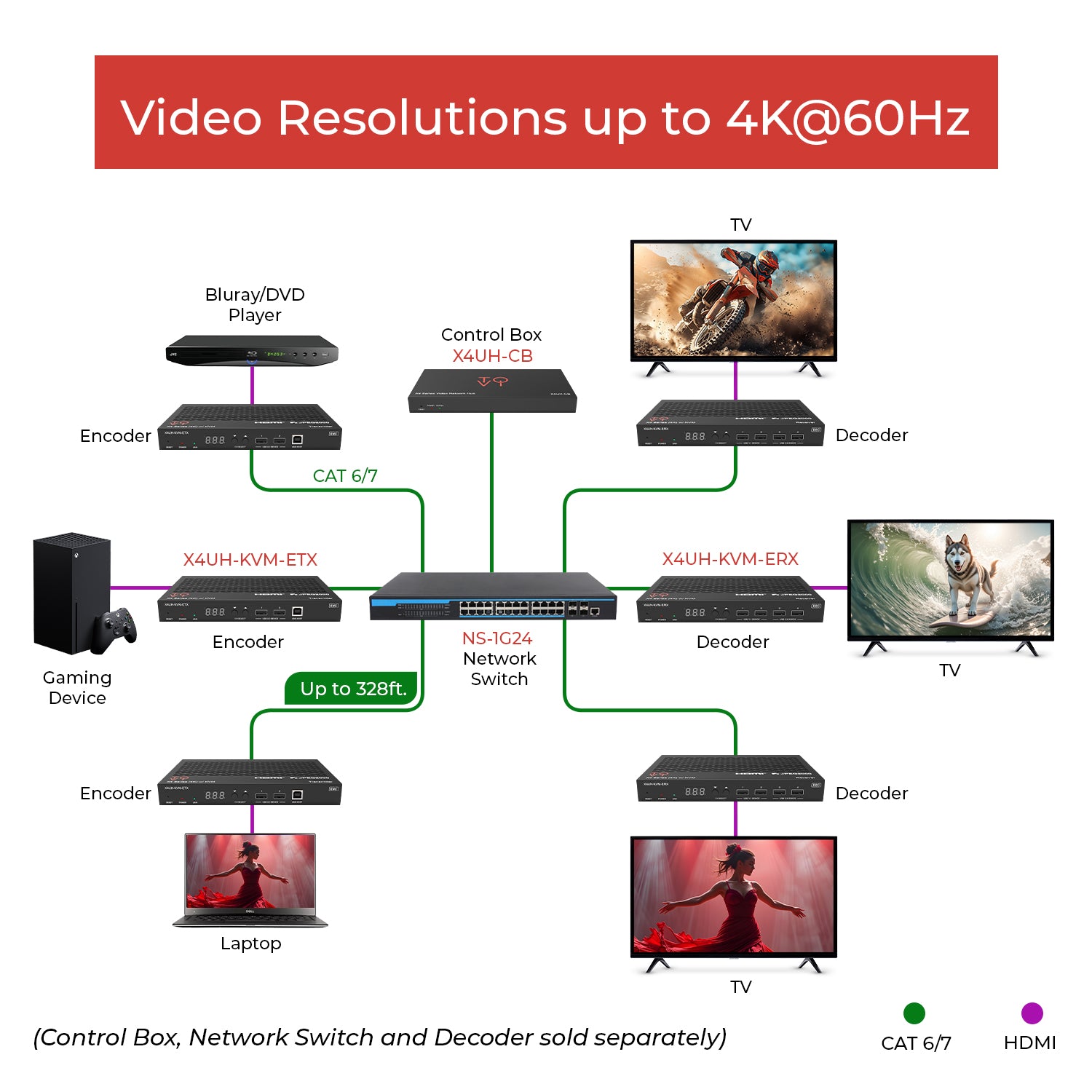

  • Advanced Signal Routing – Supports unicast, multicast, point-to-point, matrix switching, and video wall functionality (up to 9x9).
  • Intelligent Video Wall Management – Features video wall class management and MJPEG sub-stream real-time preview.
  • 1G Ethernet with PoE Support – Simplifies installation and power delivery over standard network infrastructure.

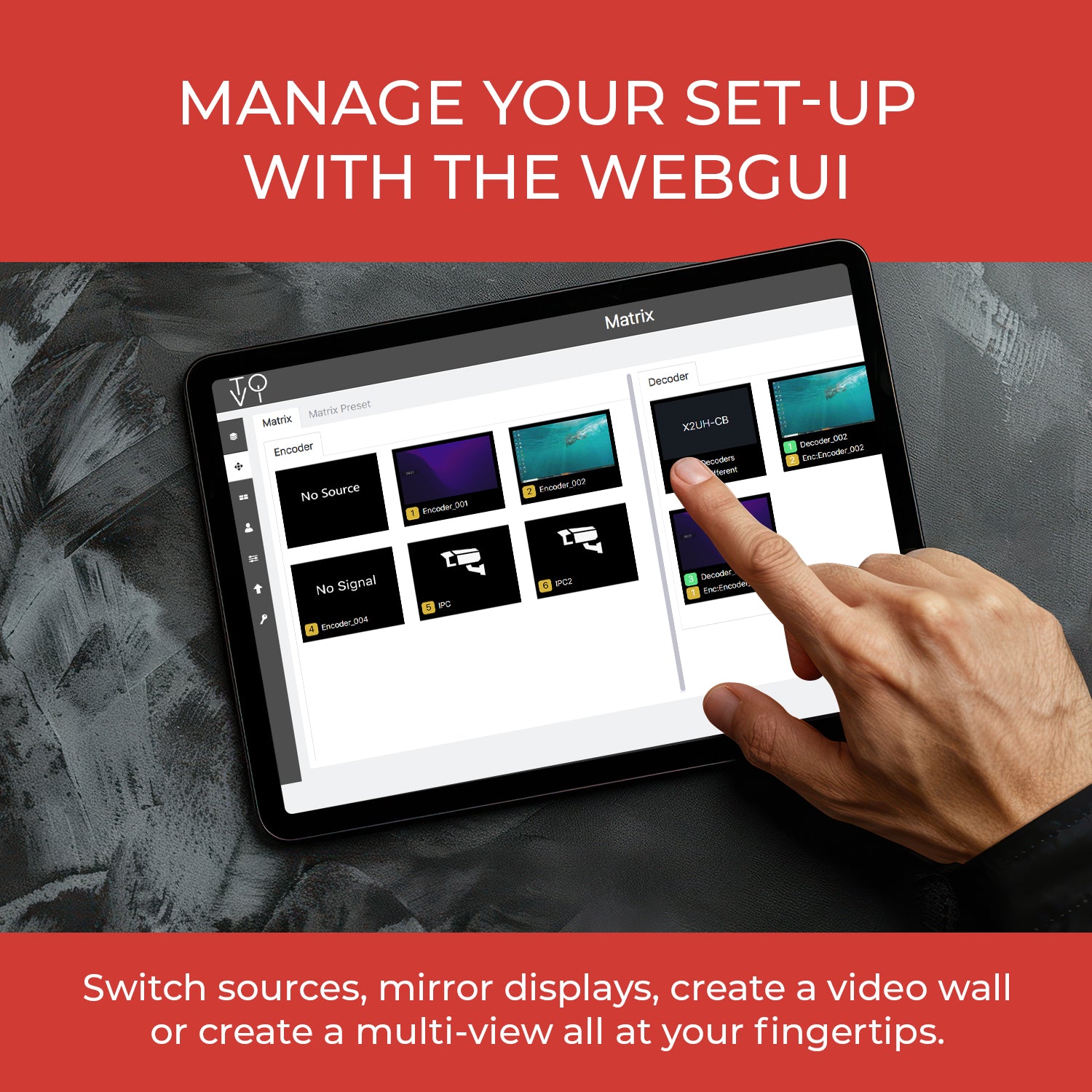

  • Robust Control Interfaces – Built-in web interface, Telnet, and SSH for flexible device management. Control is made even easier through the X4UH-CB Network Hub.
  • Wide Audio Format Support – Compatible with LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD).
  • Smart Networking Design – Ensures easy, flexible installation for diverse professional AV environments

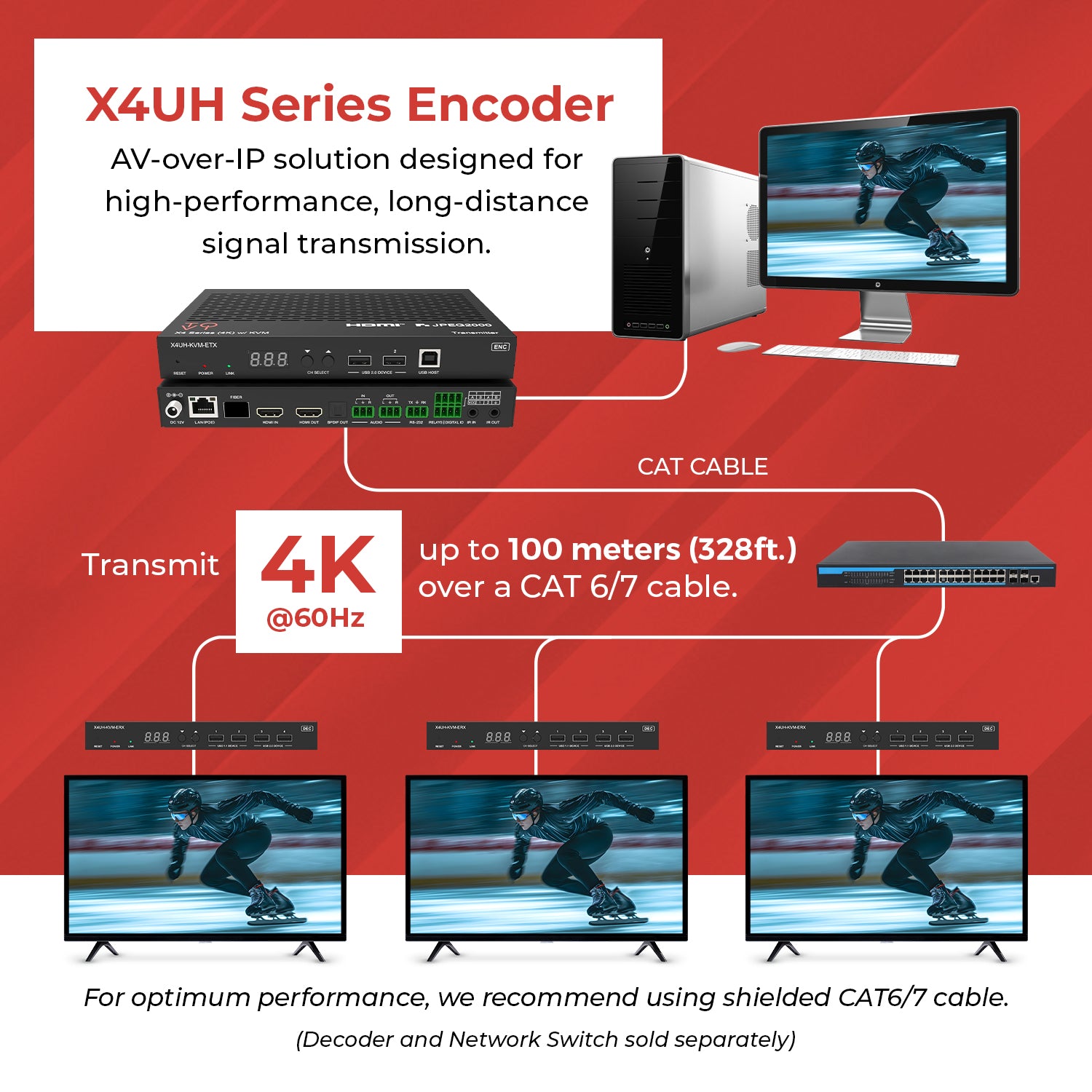

The X4UH-KVM-ETX is a versatile HDMI extender and AV-over-IP solution designed for high-performance, long-distance signal transmission. Fully compliant with HDCP 2.2 and HDMI 2.0b, it supports 4K@60Hz (4:4:4) video with up to 18Gbps bandwidth, delivering uncompromised ultra-high-definition quality.

It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables, transmitting video, analog and digital audio, IR, RS-232, CEC, and USB data seamlessly over Ethernet.

This compact unit integrates copper and fiber ports, supporting ARC/eARC, S/PDIF, and analog audio return channels for flexible audio routing. Channel configuration is simplified via front panel buttons and an LED display.

The X4UH-KVM includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and scalable video wall deployments up to 9x9 setup. Intelligent video wall class management and real-time MJPEG sub-stream preview enhance monitoring and operational efficiency.

Operating on a 1G Ethernet network with PoE support, the device offers comprehensive control and configuration through a built-in web interface, Telnet, and SSH. Control is made easier using the X4UH-CB to control all your X4UH Series devices on a single network. It supports a broad range of HDMI audio formats, including LPCM 2.0/5.1/7.1, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). The smart networking design ensures easy, flexible installation for commercial AV, broadcast, and professional environments.
