HDMI Video Wall Controller
Video Wall Controller Comparison Table
Scroll left to right to compare all OREI video wall controller models.
|
|
|
|
|
|
|
|
|
|
|
|
|
|

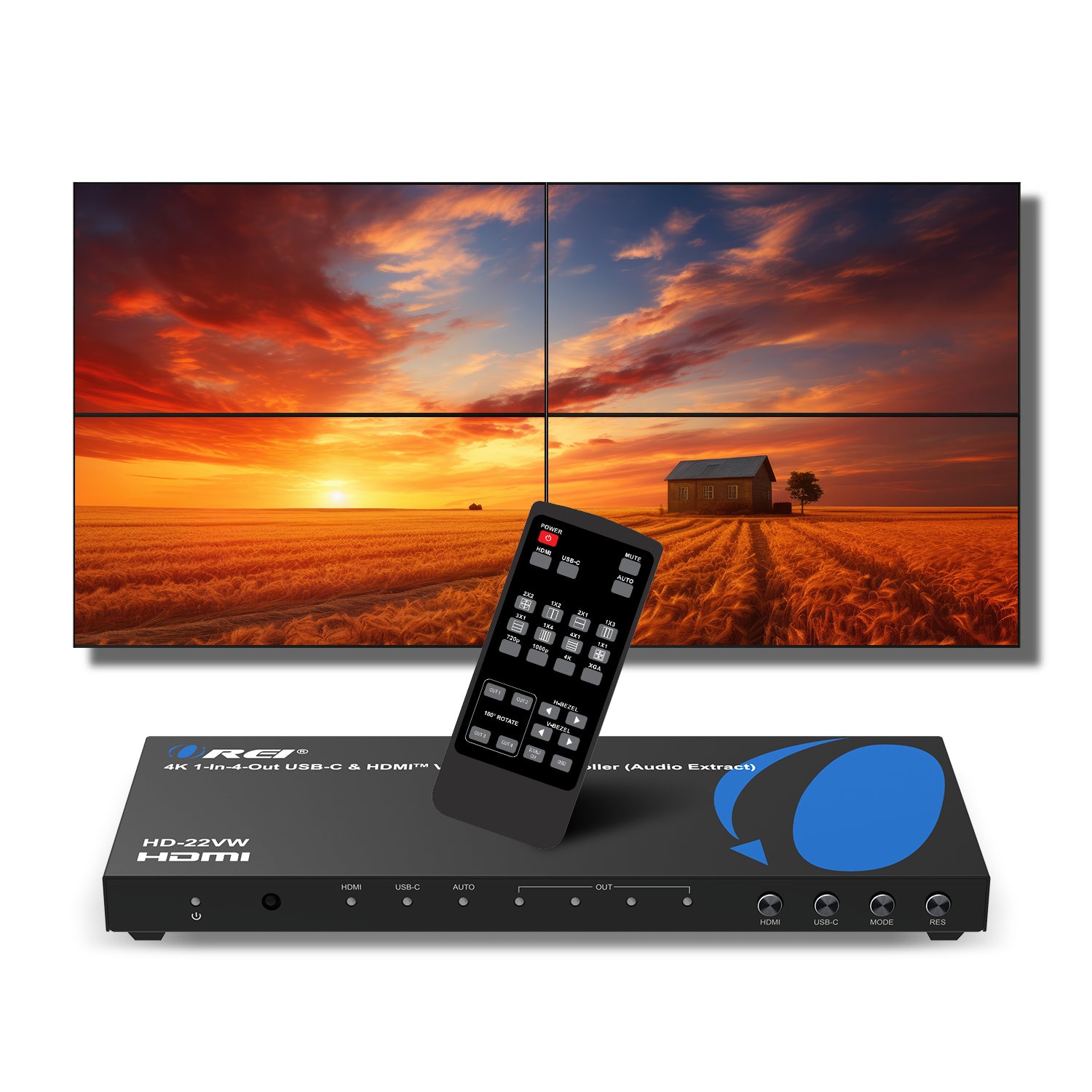

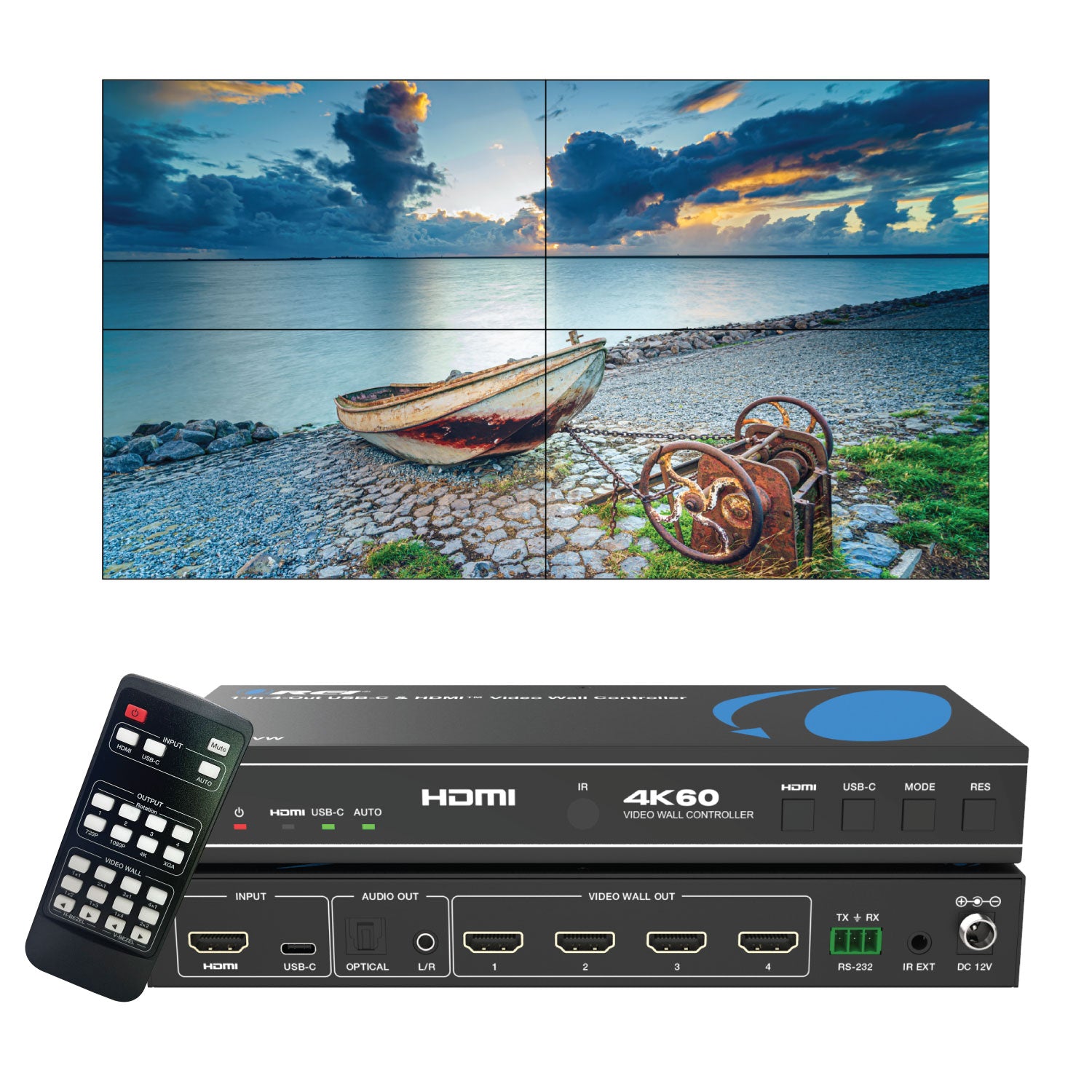

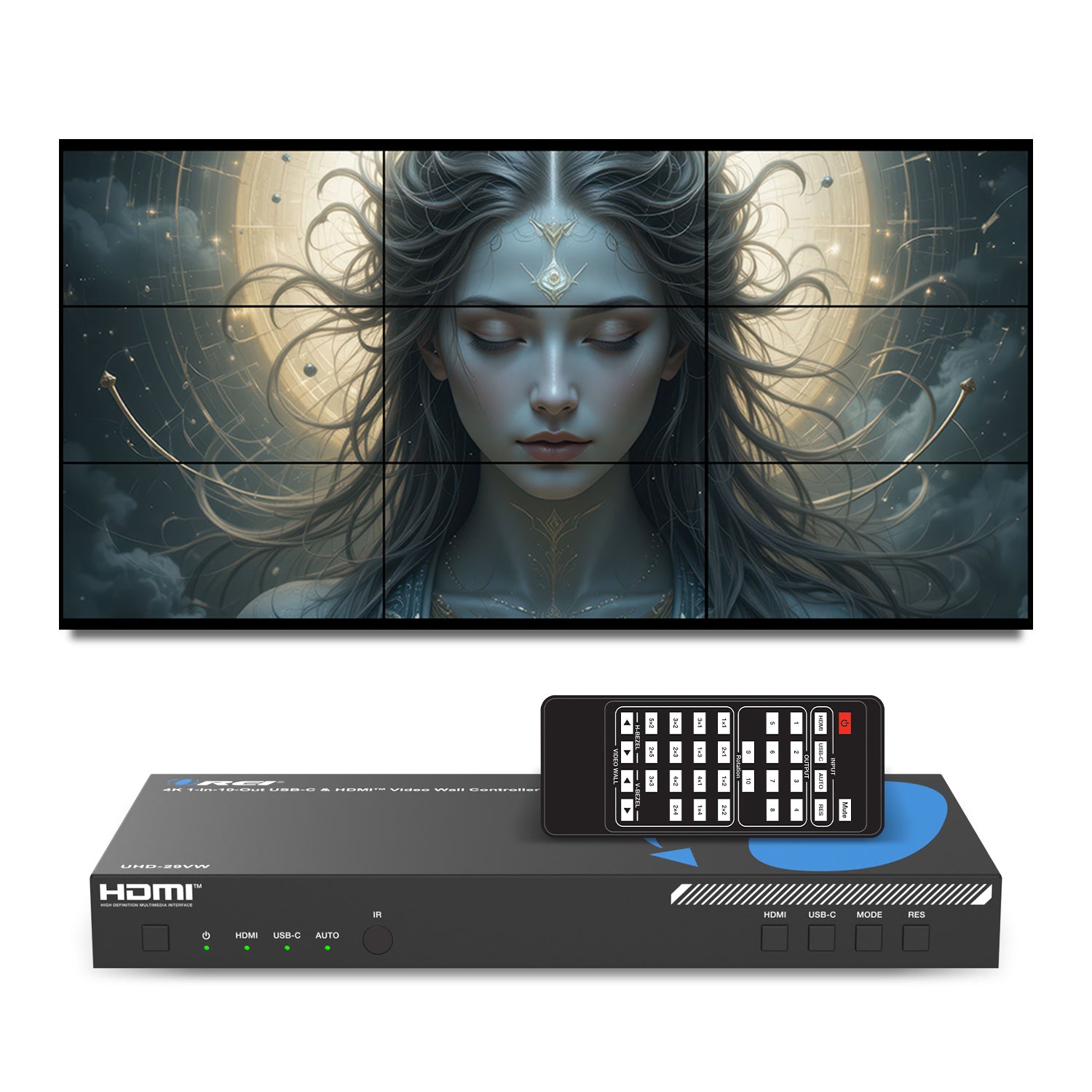

| Model | HD-22VW | UHD-19VW | UHD-14VW | UHDS-404VW | HDS-404VW | UHD-404VW | UHD-808VW | UHDS-808VW | HDS-31VW | UHD-202VW | UHD-44MVW | UHD-416MVW | UHD-29VW |
| Max Input Resolution | 1080p@60Hz | 4K@30Hz | 4K@60Hz | 4K@60Hz | 4K@30Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@30Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@30Hz |
| Max Output Res Video Wall | 1080p@60Hz | 1080p@60Hz | 1080p@60Hz | 4K@30Hz | 1080p@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 1080p@60Hz | 1080p@60Hz | 4K@60Hz | 4K@60Hz | 1080p@60Hz |
| Input Sources | 1x HDMI, 1x USB-C | 1x HDMI, 1x USB-C | 1x HDMI, 1x USB-C | 4x HDMI | 4x HDMI | 4x HDMI | 8x HDMI | 8x HDMI | 1x HDMI | 1x HDMI | 4x HDMI | 4x HDMI | 1x HDMI, 1x USB-C |
| Max Display Supported | 4 | 10 | 4 | 4 | 4 | 4 | 8 | 8 | 9 | 4 | 4 | 16 | 10 |
| Preset Recall / Seamless Switch | Yes / No | No / No | No / No | Yes / Yes | No / Yes | Yes / Yes | Yes / Yes | Yes / Yes | Yes / No | No / No | Yes / Yes | Yes / Yes | No / No |
| Control | Remote, RS-232 | Remote, RS-232 | Remote, RS-232 | Remote, RS-232, WebGUI | Remote, RS-232 | Remote, RS-232, WebGUI, CEC | Remote, RS-232, WebGUI, CEC | Remote, RS-232, WebGUI, CEC | Remote, RS-232 | Remote | Remote, RS-232, WebGUI, CEC | Remote, RS-232, WebGUI | Remote, RS-232 |
| Special Features | — | — | — | Full Matrix, EDID | Full Matrix, EDID | PIP Mode, Full Matrix, EDID | Full Matrix, EDID | Full Matrix, EDID | — | — | PIP Mode, Full Matrix, EDID | PIP Mode, Full Matrix, EDID | — |
A video wall controller is a device that splits a single image into parts to be displayed on individual screens.
Our video wall controller is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Typical display technologies include LCD panels, Direct View LED arrays, blended projection screens, Laser Phosphor Displays, and rear projection cubes. Screens specifically designed for use in video walls usually have narrow bezels in order to minimize the gap between active display areas.
